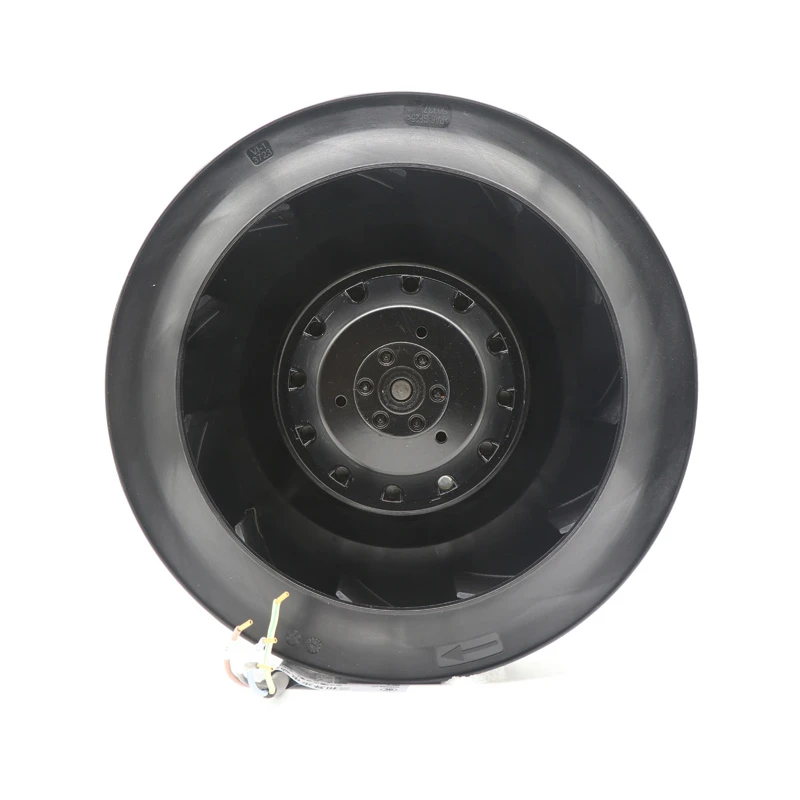

R2D220-AB02-10 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: R2D220-AB02-10 | ebm-papst 380V 75W Centrifugal Fan for Automation

Type:: Centrifugal Fans

Industry:: Automation

Description:: Configured for Automation, the ebm-papst R2D220-AB02-10 is a 380 V AC forward-curved centrifugal fan, with a focus on a documented 75 W input rating. This assists electrical and mechanical review.

Datasheet:: R2D220-AB02-10 | ebm-papst 380V 75W Centrifugal Fan for Automation Datasheet (Pdf)

Product Features

Rated Voltage(V)	380
Size(mm)	220
Input Power(W)	75
Speed(rpm)	2800

Product Features

Reliable AC Cooling

Designed for Automation, the ebm-papst R2D220-AB02-10 AC centrifugal fan provides a defined platform for controlled heat removal and airflow management. It suits OEM equipment and service replacement when checked against the exact drawing and operating curve.

Documented selection points include 380 V supply, 75 W input, 220 mm size, 2800 rpm speed. These values support electrical, envelope and duty-point comparison.

For procurement, verify voltage, duty point, dimensions, connector and mounting. Correct sizing and clear airflow paths support stable operation, controlled noise and long service life. Confirm speed control, IP protection and approvals in the exact-model datasheet. The listed ratings help buyers screen compatibility before final duty-point review.

Application Industry

Drive Systems

Used in inverter and drive systems to remove heat from power electronics during industrial operation. Consistent airflow helps protect components and supports dependable machine availability.

Product Insights

Typical Applications — R2D220-AB02-10 AC Centrifugal

Condenser Cooling: The R2D220-AB02-10 axial fan excels at condenser heat rejection in refrigeration and HVAC.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What should be inspected if airflow drops on the R2D220-AB02-10?

Check for blocked airflow paths, incorrect supply, loose wiring, abnormal rotation or system resistance before consulting the exact service documentation.

How should the R2D220-AB02-10 be checked for compatibility?

Compare 220 mm, 380 V, 75 W plus mounting, connector and duty-point requirements.

What installation checks apply to the R2D220-AB02-10?

Verify mounting orientation, inlet and outlet clearance, fastener security, electrical connections and the exact dimensional drawing before startup.
