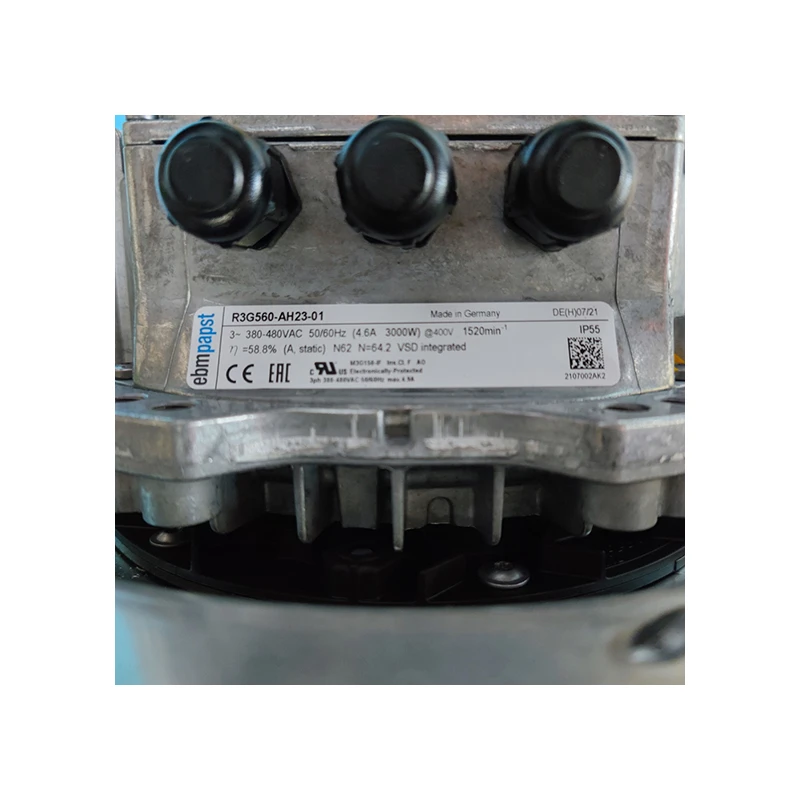

R3G560-AH23-01 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: R3G560-AH23-01 | ebm-papst 3~380-480V 3000W Centrifugal Fan for Air Purification

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Aimed at Air Purification, the ebm-papst R3G560-AH23-01 is a 380-480V EC backward-curved centrifugal fan, featuring a listed airflow of 9,350 m³/h. It supports replacement and design review.

Datasheet:: R3G560-AH23-01 | ebm-papst 3~380-480V 3000W Centrifugal Fan for Air Purification Datasheet (Pdf)

Product Features

Rated Voltage(V)	3`380-480
Size(mm)	560
Max.Air Flow(m³/h)	9350
Max.Pressure(Pa)	670
Input Power(W)	3000
Speed(rpm)	1520
Noise(db)	75

Product Features

Efficient EC Cooling

Designed for HVAC and Ventilation, the ebm-papst R3G560-AH23-01 EC centrifugal fan provides a defined platform for controlled heat removal and airflow management. It suits OEM equipment and service replacement when checked against the exact drawing and operating curve.

Documented selection points include 3`380-480 V supply, 3000 W input, 560 mm size, up to 9350 m3/h airflow. These values support electrical, envelope and duty-point comparison.

For procurement, verify voltage, duty point, dimensions, connector and mounting. Correct sizing and clear airflow paths support stable operation, controlled noise and long service life. Confirm speed control, IP protection and approvals in the exact-model datasheet.

Application Industry

HVAC Systems

Applied in HVAC and ventilation equipment to move and circulate air through the system. This industrial fan supports heat exchange, indoor-air management and reliable operation of climate-control equipment.

Product Insights

AC to EC Replacement — R3G RadiPac EC Centrifugal

The ebm-papst R3G560-AH23-01 from the RadiPac EC Centrifugal series is a direct energy-saving replacement for legacy AC fans including R4D, R2D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

R3G EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

R3G Series Comparison — R3G560-AH23-01 vs Variants

How the R3G560-AH23-01 compares to nearby R3G series variants:

Model	R3G630-PC08-03	R3G190-RC05-03	R3G220-RC05-03	R3G220-RC09-08
Air Flow	12470 m³/h	735 m³/h	—	—
Power	4250 W	83 W	85 W	51 W
Noise	74 dB	— dB	— dB	— dB
Size	630 mm	190 mm	220 mm	220 mm

All R3G series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — R3G560-AH23-01 RadiPac EC Centrifugal

Data Center CRAH/CRAC Units: The R3G560-AH23-01 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

What is the representative feature of the R3G560-AH23-01?

The supplied comparison identifies a listed airflow of 9,350 m³/h; review it together with the other listed ratings rather than as a standalone selection criterion.

Why choose the R3G560-AH23-01 for Air Purification?

Its documented 380-480V EC backward-curved centrifugal fan configuration provides a traceable match for projects whose electrical and airflow requirements align with the model data.

What compliance information is supplied for the R3G560-AH23-01?

The workbook marks the product RoHS Compliant. Obtain the exact-model declaration and any project-specific approvals required by the destination market.
