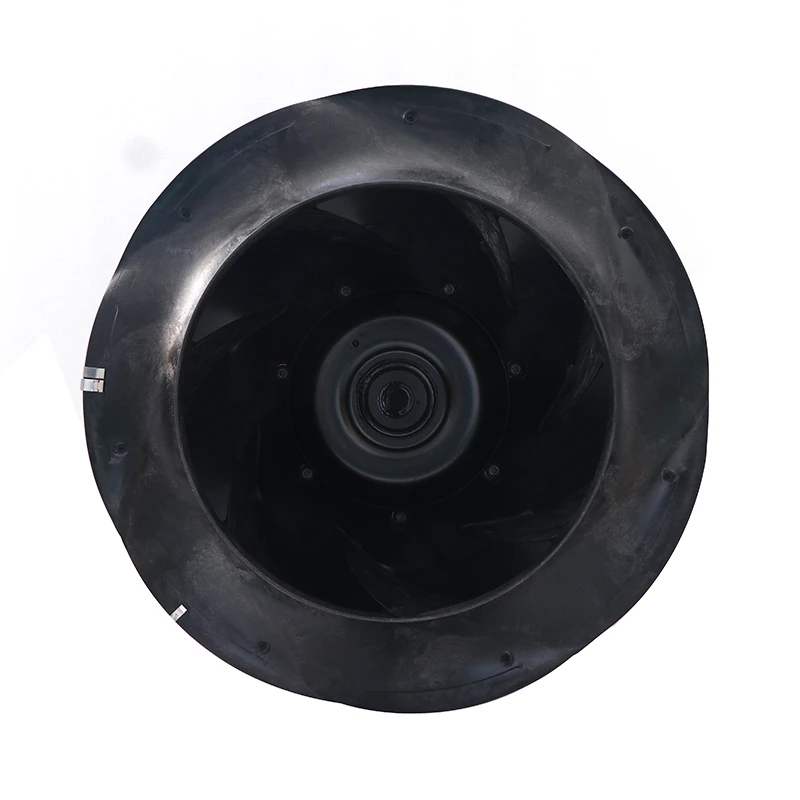

R3G560-RA24-02 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: R3G560-RA24-02 | ebm-papst 3~380-480V 3150W Centrifugal Fan for Air Purification

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Engineered around Air Purification, the ebm-papst R3G560-RA24-02 is a 380-480V EC backward-curved centrifugal fan, offering a listed pressure capability of 900 Pa. This enables specification-led selection.

Datasheet:: R3G560-RA24-02 | ebm-papst 3~380-480V 3150W Centrifugal Fan for Air Purification Datasheet (Pdf)

Product Features

Rated Voltage(V)	3`380-480
Size(mm)	560
Max.Air Flow(m³/h)	14685
Max.Pressure(Pa)	900
Input Power(W)	3150
Speed(rpm)	1675
Noise(db)	73

Product Features

Efficient EC Cooling

The ebm-papst R3G560-RA24-02 is an EC centrifugal fan for HVAC and Ventilation, combining application-focused airflow with practical integration criteria. It serves equipment manufacturers and maintenance teams that require traceable model selection.

Documented selection points include 3`380-480 V supply, 3150 W input, 560 mm size, up to 14685 m3/h airflow. These values support electrical, envelope and duty-point comparison.

For procurement, verify voltage, duty point, dimensions, connector and mounting. Correct sizing and clear airflow paths support stable operation, controlled noise and long service life. Confirm speed control, IP protection and approvals in the exact-model datasheet. It supports applications that prioritize reliable operation and maintainable design.

Application Industry

HVAC Systems

Applied in HVAC and ventilation equipment to move and circulate air through the system. This industrial fan supports heat exchange, indoor-air management and reliable operation of climate-control equipment.

Product Insights

AC to EC Replacement — R3G RadiPac EC Centrifugal

The ebm-papst R3G560-RA24-02 from the RadiPac EC Centrifugal series is a direct energy-saving replacement for legacy AC fans including R4D, R2D. Key benefits:

35-50% energy savings — EC motor variable speed matches airflow demand precisely
Identical mm mounting — no ductwork modification needed
0-10V/PWM speed control — integrates with Building Management Systems
40,000+ hour bearing life — double the typical AC fan lifespan

R3G EC fans operate at V with W rated power. When replacing AC models, wire the 0-10V control signal alongside the standard three-phase power cable.

R3G Series Comparison — R3G560-RA24-02 vs Variants

How the R3G560-RA24-02 compares to nearby R3G series variants:

Model	R3G630-PC08-03	R3G190-RC05-03	R3G220-RC05-03	R3G220-RC09-08
Air Flow	12470 m³/h	735 m³/h	—	—
Power	4250 W	83 W	85 W	51 W
Noise	74 dB	— dB	— dB	— dB
Size	630 mm	190 mm	220 mm	220 mm

All R3G series fans from Hengrui include performance curves, mounting instructions and factory warranty. Contact us for project-specific selection.

Typical Applications — R3G560-RA24-02 RadiPac EC Centrifugal

Data Center CRAH/CRAC Units: The R3G560-RA24-02 delivers reliable cooling for Computer Room Air Handling with 24/7 uptime. EC motor enables precise temperature control.

AHU Air Handling: Engineered for integration into Air Handling Units.

Industrial Process Ventilation: Machinery cooling, enclosure ventilation and process air movement. Hengrui provides custom engineering support.

Frequently Asked Questions

Is the R3G560-RA24-02 suitable for high-reliability cooling?

It can be evaluated for demanding service using the documented ratings, installation limits and preventive-maintenance plan for the application.

Is the R3G560-RA24-02 easy to maintain?

Provide service access, keep the airflow path clean, inspect wiring and mounting, and investigate abnormal noise or vibration before continued use.

Can the R3G560-RA24-02 help control total ownership cost?

Correct sizing and operation within documented limits can reduce avoidable thermal stress and maintenance events; project savings require duty-cycle analysis.

Does the R3G560-RA24-02 support speed control?

Control capability and input method must be confirmed in the exact-model datasheet and wiring diagram; do not infer them from the fan family alone.
