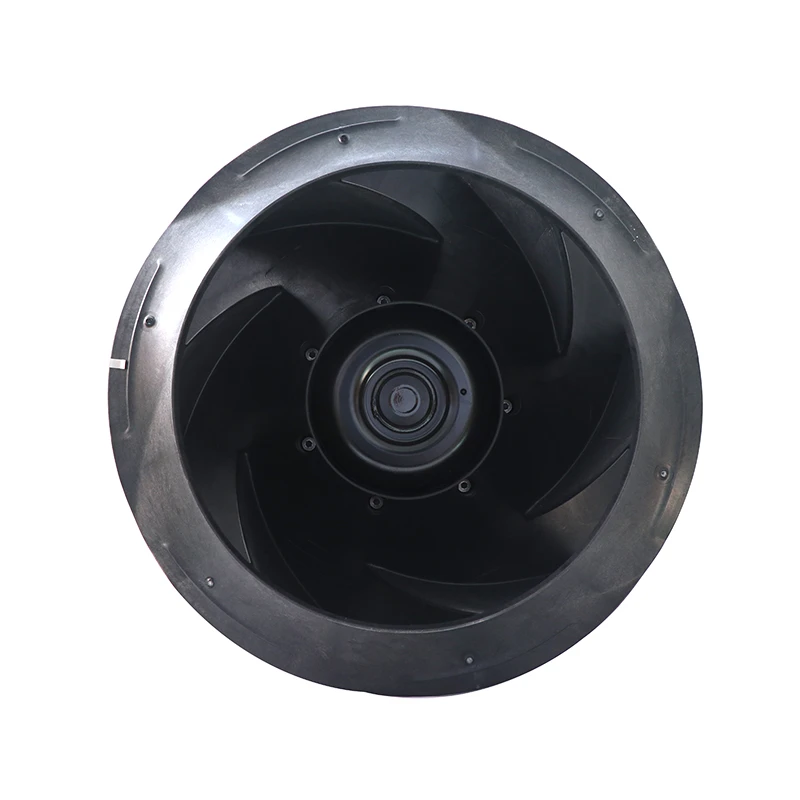

R3G560-RA24-03 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: R3G560-RA24-03 | ebm-papst 3~380-480V 3500W Centrifugal Fan for Air Purification

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Designed for Air Purification, the ebm-papst R3G560-RA24-03 is a 380-480V EC backward-curved centrifugal fan, characterized by a listed airflow of 15,425 m³/h. The value helps verify equipment fit.

Datasheet:: R3G560-RA24-03 | ebm-papst 3~380-480V 3500W Centrifugal Fan for Air Purification Datasheet (Pdf)

Product Features

Rated Voltage(V)	3`380-480
Size(mm)	560
Max.Air Flow(m³/h)	15425
Max.Pressure(Pa)	800
Input Power(W)	3500
Speed(rpm)	1750

Product Features

Efficient EC Cooling

R3G560-RA24-03 is an ebm-papst EC centrifugal fan for HVAC and Ventilation, where controlled heat removal and airflow management must match the actual duty point. Its model-specific format supports OEM builds, retrofit planning and replacement sourcing.

Documented selection points include 3`380-480 V supply, 3500 W input, 560 mm size, up to 15425 m3/h airflow. These values support electrical, envelope and duty-point comparison.

For procurement, verify voltage, duty point, dimensions, connector and mounting. Correct sizing and clear airflow paths support stable operation, controlled noise and long service life. Confirm speed control, IP protection and approvals in the exact-model datasheet.

Application Industry

HVAC Systems

Applied in HVAC and ventilation equipment to move and circulate air through the system. This industrial fan supports heat exchange, indoor-air management and reliable operation of climate-control equipment.

Frequently Asked Questions

Is the R3G560-RA24-03 suitable for high-reliability cooling?

It can be evaluated for demanding service using the documented ratings, installation limits and preventive-maintenance plan for the application.

Which equipment can use the R3G560-RA24-03?

It is listed for Air Purification. Confirm voltage, duty point, dimensions and mounting against the equipment requirements before selection.

What distinguishes the R3G560-RA24-03 from a general-purpose fan?

Its EC backward-curved centrifugal fan configuration and a listed airflow of 15,425 m³/h provide model-specific criteria for matching Air Purification systems.
