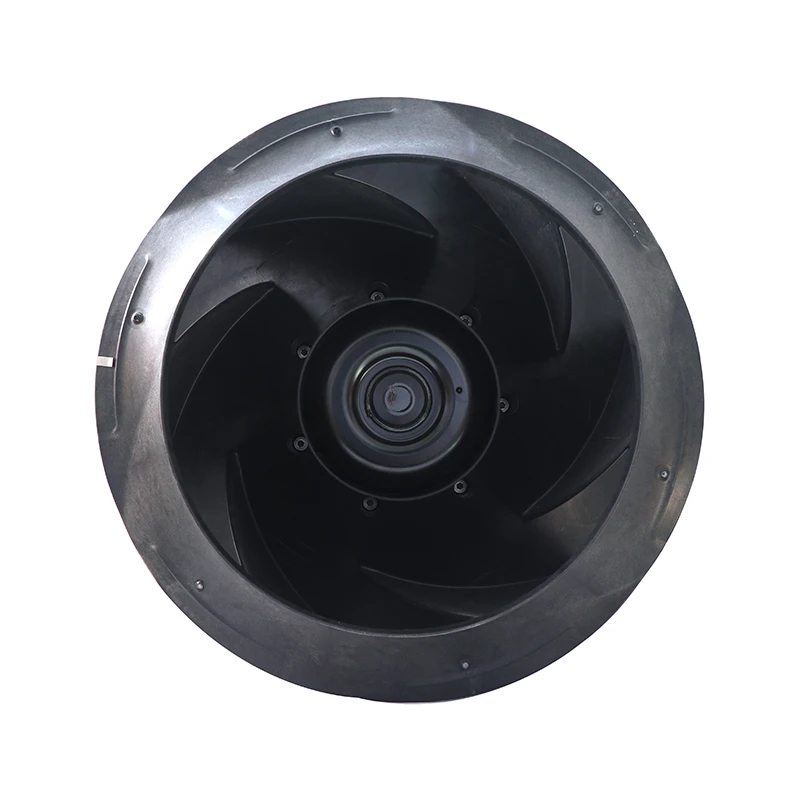

R3G560-RA24-36 ebm-papst Centrifugal Fan

Brand :: ebmpapst

Model:: R3G560-RA24-36 | ebm-papst 3~380-480V 3500W Centrifugal Fan for Air Purification

Type:: Centrifugal Fans

Industry:: HVAC & Ventilation

Description:: Designed for Air Purification, the ebm-papst R3G560-RA24-36 is a 380-480V EC backward-curved centrifugal fan, characterized by 560 mm dimensions for installation planning. The value helps verify equipment fit.

Datasheet:: R3G560-RA24-36 | ebm-papst 3~380-480V 3500W Centrifugal Fan for Air Purification Datasheet (Pdf)

Product Features

Rated Voltage(V)	3`380-480
Size(mm)	560
Input Power(W)	3500
Speed(rpm)	1750

Product Features

Efficient EC Cooling

The ebm-papst R3G560-RA24-36 is an EC centrifugal fan for HVAC and Ventilation, combining application-focused airflow with practical integration criteria. It serves equipment manufacturers and maintenance teams that require traceable model selection.

Documented selection points include 3`380-480 V supply, 3500 W input, 560 mm size, 1750 rpm speed. These values support electrical, envelope and duty-point comparison.

For procurement, verify voltage, duty point, dimensions, connector and mounting. Correct sizing and clear airflow paths support stable operation, controlled noise and long service life. Confirm speed control, IP protection and approvals in the exact-model datasheet. The listed ratings help buyers screen compatibility before final duty-point review.

Application Industry

HVAC Systems

Applied in HVAC and ventilation equipment to move and circulate air through the system. This industrial fan supports heat exchange, indoor-air management and reliable operation of climate-control equipment.

Frequently Asked Questions

Is the R3G560-RA24-36 suitable for high-reliability cooling?

It can be evaluated for demanding service using the documented ratings, installation limits and preventive-maintenance plan for the application.

Can the R3G560-RA24-36 help control total ownership cost?

Correct sizing and operation within documented limits can reduce avoidable thermal stress and maintenance events; project savings require duty-cycle analysis.

What should be inspected if airflow drops on the R3G560-RA24-36?

Check for blocked airflow paths, incorrect supply, loose wiring, abnormal rotation or system resistance before consulting the exact service documentation.
