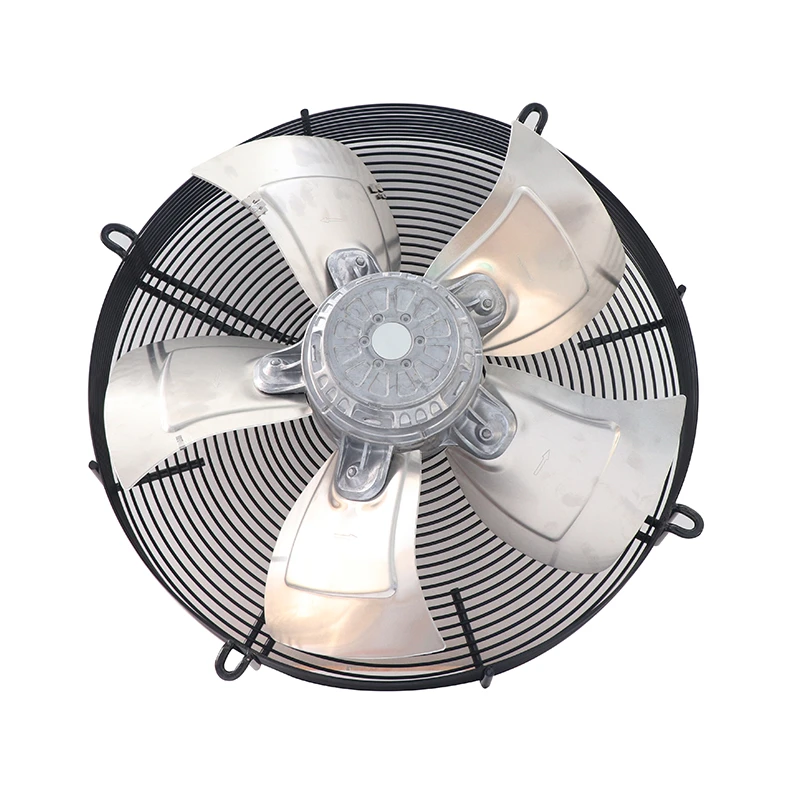

S4D500-AD03-01 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: S4D500-AD03-01 | ebm-papst 480V 1220W AC Axial Fan for Refrigeration Cooling

Type:: Axial Fans

Industry:: Refrigeration Equipment

Description:: Designed for Refrigeration Cooling, the ebm-papst S4D500-AD03-01 is a 480 V AC axial fan, whose supplied data highlights a listed pressure capability of 150 Pa. It provides a practical sizing reference.

Datasheet:: S4D500-AD03-01 | ebm-papst 480V 1220W AC Axial Fan for Refrigeration Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	480
Size(mm)	500
Max.Air Flow(m³/h)	11300
Max.Pressure(Pa)	150
Input Power(W)	1220
Speed(rpm)	1570
Noise(db)	75

Product Features

High Airflow Cooling

The ebm-papst S4D500-AD03-01 is an AC axial fan for condenser airflow, refrigeration cooling, providing directed airflow in enclosures and cooling assemblies.

Data includes 480 V operation, airflow up to 11300 m³/h and pressure up to 150 Pa for matching airflow to system resistance. Its integrated motor and impeller support stable ventilation. Listed noise is 75 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the S4D500-AD03-01 should be checked for wiring, mounting, duty point and ambient limits before selection. Its documented operating data supports model comparison, replacement planning and purchasing review.

Application Industry

Condenser Airflow

The S4D500-AD03-01 ebm-papst fan is provides airflow across condenser assemblies, helping transfer heat away from the coil and maintain stable thermal performance in refrigeration equipment.

Refrigeration Cooling

The S4D500-AD03-01 ebm-papst fan is suitable for refrigeration equipment where continuous air movement supports heat exchange, component protection and stable temperature-control performance.

Frequently Asked Questions

Is the S4D500-AD03-01 easy to maintain?

Provide service access, keep the airflow path clean, inspect wiring and mounting, and investigate abnormal noise or vibration before continued use.

Can the S4D500-AD03-01 help control total ownership cost?

Correct sizing and operation within documented limits can reduce avoidable thermal stress and maintenance events; project savings require duty-cycle analysis.

What is the representative feature of the S4D500-AD03-01?

The supplied comparison identifies a listed pressure capability of 150 Pa; review it together with the other listed ratings rather than as a standalone selection criterion.
