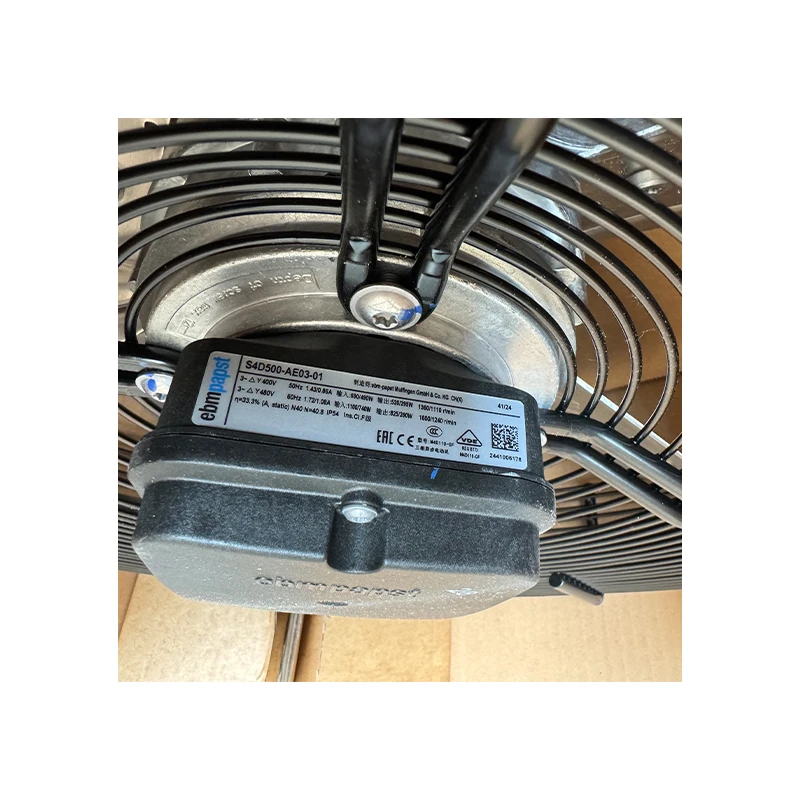

S4D500-AE03-01 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: S4D500-AE03-01 | ebm-papst 480V 1100W AC Axial Fan for Refrigeration Cooling

Type:: Axial Fans

Industry:: Refrigeration Equipment

Description:: Engineered around Refrigeration Cooling, the ebm-papst S4D500-AE03-01 is a 480 V AC axial fan, with a focus on a listed pressure capability of 215 Pa. This assists electrical and mechanical review.

Datasheet:: S4D500-AE03-01 | ebm-papst 480V 1100W AC Axial Fan for Refrigeration Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	480
Size(mm)	500
Max.Air Flow(m³/h)	10350
Max.Pressure(Pa)	215
Input Power(W)	1100
Speed(rpm)	1600
Noise(db)	70

Product Features

High Static Airflow

The ebm-papst S4D500-AE03-01 is an AC axial fan for refrigeration cooling, providing directed airflow in enclosures and cooling assemblies.

Data includes 480 V operation, airflow up to 10350 m³/h and pressure up to 215 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, IP54 protection for durable motor support. Listed noise is 70 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the S4D500-AE03-01 should be checked for wiring, mounting, duty point and ambient limits before selection. Its documented operating data supports model comparison, replacement planning and purchasing review.

Application Industry

Refrigeration Cooling

The S4D500-AE03-01 ebm-papst fan is suitable for refrigeration and cooling equipment where forced airflow supports heat rejection, component protection and stable operation under recurring thermal loads.

Frequently Asked Questions

Is the S4D500-AE03-01 suitable for high-reliability cooling?

It can be evaluated for demanding service using the documented ratings, installation limits and preventive-maintenance plan for the application.

What installation checks apply to the S4D500-AE03-01?

Verify mounting orientation, inlet and outlet clearance, fastener security, electrical connections and the exact dimensional drawing before startup.

What should be inspected if airflow drops on the S4D500-AE03-01?

Check for blocked airflow paths, incorrect supply, loose wiring, abnormal rotation or system resistance before consulting the exact service documentation.

Does the S4D500-AE03-01 support speed control?

Control capability and input method must be confirmed in the exact-model datasheet and wiring diagram; do not infer them from the fan family alone.
