Home > Products > By type > Axial Fans > S4D560-AQ01-01 | ebm-papst 400V 1100W AC Axial Fan for Refrigeration Cooling

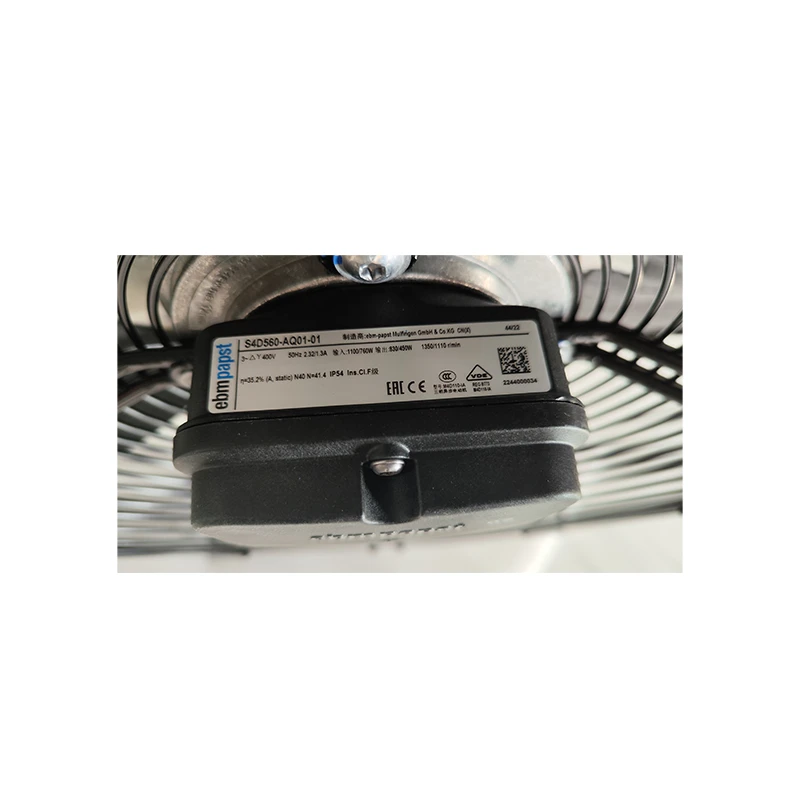

S4D560-AQ01-01 ebm-papst Axial Fan

S4D560-AQ01-01 | ebm-papst 400V 1100W AC Axial Fan for Refrigeration Cooling
S4D560-AQ01-01 | ebm-papst 400V 1100W AC Axial Fan for Refrigeration Cooling
Brand :
ebmpapst
Model:
S4D560-AQ01-01 | ebm-papst 400V 1100W AC Axial Fan for Refrigeration Cooling
Type:
Axial Fans
Industry:
Refrigeration Equipment
Description:

Designed for Refrigeration Cooling, the ebm-papst S4D560-AQ01-01 is a 400 V AC axial fan, with a focus on a listed pressure capability of 170 Pa. This enables specification-led selection.

Datasheet:
S4D560-AQ01-01 | ebm-papst 400V 1100W AC Axial Fan for Refrigeration Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)400
Size(mm)560
Max.Air Flow(m³/h)11975
Max.Pressure(Pa)170
Input Power(W)1100
Speed(rpm)1350
Noise(db)70

Product Features

High Airflow Cooling

The ebm-papst S4D560-AQ01-01 is an AC axial fan for refrigeration cooling, providing directed airflow in enclosures and cooling assemblies.

Data includes 400 V operation, airflow up to 11975 m³/h and pressure up to 170 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, IP54 protection for durable motor support. Listed noise is 70 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the S4D560-AQ01-01 should be checked for wiring, mounting, duty point and ambient limits before selection. Its documented operating data supports model comparison, replacement planning and purchasing review.

Application Industry

Refrigeration Cooling

The S4D560-AQ01-01 ebm-papst fan is suitable for refrigeration and cooling equipment where forced airflow supports heat rejection, component protection and stable operation under recurring thermal loads.

Frequently Asked Questions

What performance data is available for the S4D560-AQ01-01?

The supplied table lists 11,975 m³/h, 170 Pa, 1,350 rpm; use the exact datasheet for the complete operating curve.

How can noise be managed when using the S4D560-AQ01-01?

The table lists 70 dB. Use unobstructed airflow, secure mounting and suitable isolation where required.

Can the S4D560-AQ01-01 help control total ownership cost?

Correct sizing and operation within documented limits can reduce avoidable thermal stress and maintenance events; project savings require duty-cycle analysis.

Does the S4D560-AQ01-01 support speed control?

Control capability and input method must be confirmed in the exact-model datasheet and wiring diagram; do not infer them from the fan family alone.
