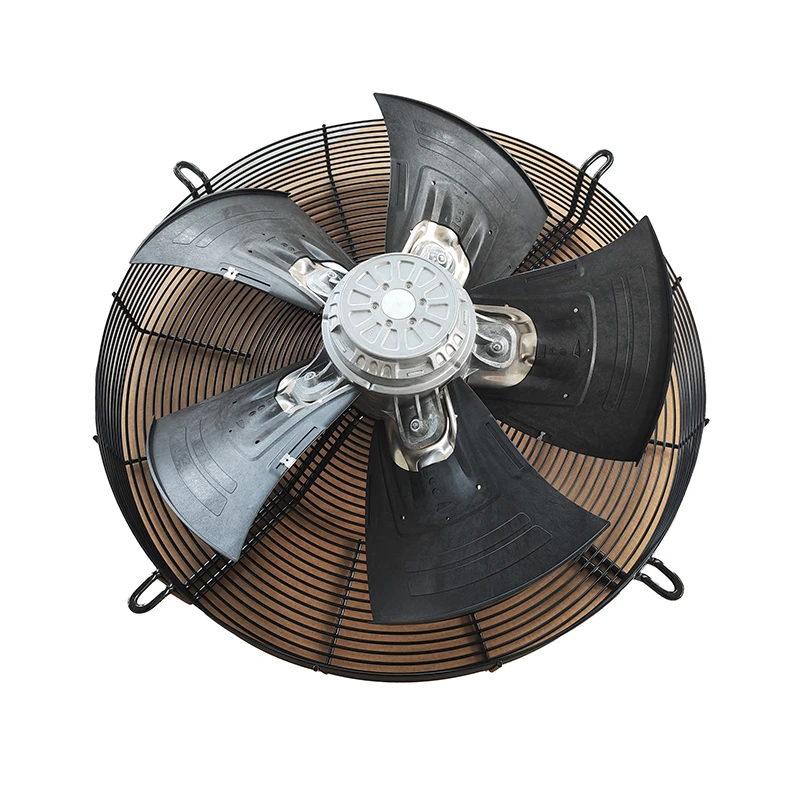

S4D560-AR03-03 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: S4D560-AR03-03 | ebm-papst 400V 1320W AC Axial Fan for Refrigeration Cooling

Type:: Axial Fans

Industry:: Refrigeration Equipment

Description:: Suited to Refrigeration Cooling, ebm-papst S4D560-AR03-03 is a 400 V AC axial fan, defined by a listed pressure capability of 215 Pa. This helps guide installation planning. Its documented data supports integration planning.

Datasheet:: S4D560-AR03-03 | ebm-papst 400V 1320W AC Axial Fan for Refrigeration Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	400
Size(mm)	560
Max.Air Flow(m³/h)	11750
Max.Pressure(Pa)	215
Input Power(W)	1320
Speed(rpm)	1575
Noise(db)	75

Product Features

High Static Airflow

The ebm-papst S4D560-AR03-03 is an AC axial fan for refrigeration cooling, providing directed airflow in enclosures and cooling assemblies.

Data includes 400 V operation, airflow up to 11750 m³/h and pressure up to 215 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support, IP54 protection for durable motor support. Listed noise is 75 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the S4D560-AR03-03 should be checked for wiring, mounting, duty point and ambient limits before selection. Its documented operating data supports model comparison, replacement planning and purchasing review.

Application Industry

Refrigeration Cooling

The S4D560-AR03-03 ebm-papst fan is suitable for refrigeration and cooling equipment where forced airflow supports heat rejection, component protection and stable operation under recurring thermal loads.

Frequently Asked Questions

Is the S4D560-AR03-03 easy to maintain?

Provide service access, keep the airflow path clean, inspect wiring and mounting, and investigate abnormal noise or vibration before continued use.

Can the S4D560-AR03-03 help control total ownership cost?

Correct sizing and operation within documented limits can reduce avoidable thermal stress and maintenance events; project savings require duty-cycle analysis.

Does the S4D560-AR03-03 support speed control?

Control capability and input method must be confirmed in the exact-model datasheet and wiring diagram; do not infer them from the fan family alone.

What supply voltage does the S4D560-AR03-03 require?

The supplied table lists 400 V. Verify supply type, frequency, wiring and permissible tolerances before commissioning.
