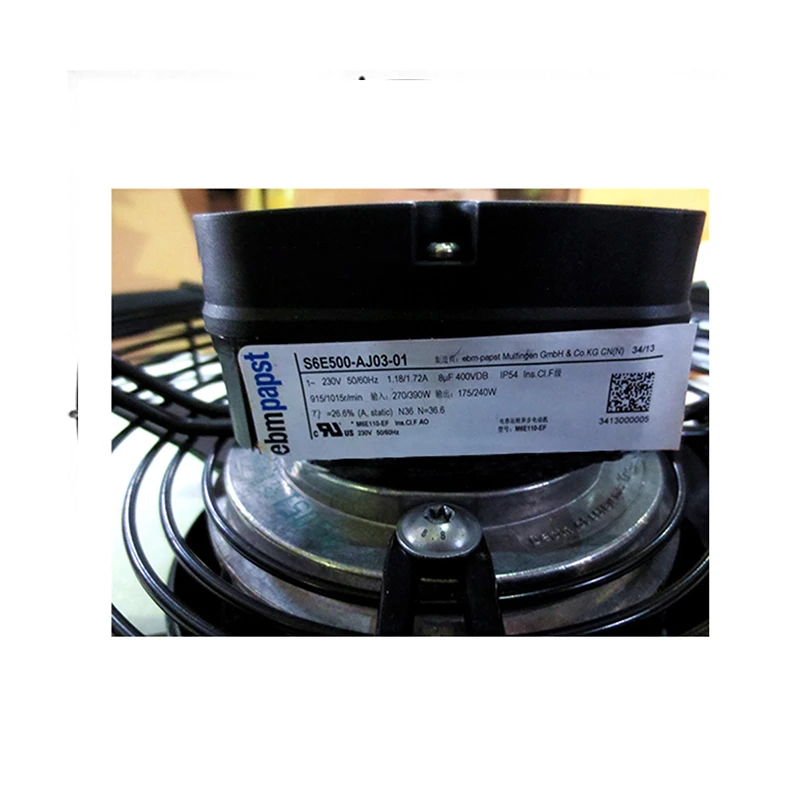

S6E500-AJ03-01 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: S6E500-AJ03-01 | ebm-papst 230V 390W AC Axial Fan for Air Handling Cooling

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: Engineered around Air Handling Cooling, ebm-papst S6E500-AJ03-01 is a 230 V AC axial fan, offering a documented speed of 1,015 rpm. It gives engineers a clear comparison point. Its documented data supports integration planning.

Datasheet:: S6E500-AJ03-01 | ebm-papst 230V 390W AC Axial Fan for Air Handling Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	500
Max.Air Flow(m³/h)	7085
Max.Pressure(Pa)	90
Input Power(W)	390
Speed(rpm)	1015
Noise(db)	70

Product Features

High Airflow Cooling

The ebm-papst S6E500-AJ03-01 is an AC axial fan for hvac systems, providing directed airflow in enclosures and cooling assemblies.

Data includes 230 V operation, airflow up to 7085 m³/h and pressure up to 90 Pa for matching airflow to system resistance. The datasheet lists ball-bearing support for durable motor support. Listed noise is 70 dB at the stated test point. Correct electrical selection and clear inlet spacing support efficient cooling, reliable operation and long fan life.

Suitable for OEM engineers, manufacturers and maintenance buyers, the S6E500-AJ03-01 should be checked for wiring, mounting, duty point and ambient limits before selection. Its documented operating data supports model comparison, replacement planning and purchasing review.

Application Industry

HVAC Systems

The S6E500-AJ03-01 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Frequently Asked Questions

What supply voltage does the S6E500-AJ03-01 require?

The supplied table lists 230 V. Verify supply type, frequency, wiring and permissible tolerances before commissioning.

What installation checks apply to the S6E500-AJ03-01?

Verify mounting orientation, inlet and outlet clearance, fastener security, electrical connections and the exact dimensional drawing before startup.

Is the S6E500-AJ03-01 easy to maintain?

Provide service access, keep the airflow path clean, inspect wiring and mounting, and investigate abnormal noise or vibration before continued use.

Is the S6E500-AJ03-01 suitable for high-reliability cooling?

It can be evaluated for demanding service using the documented ratings, installation limits and preventive-maintenance plan for the application.
