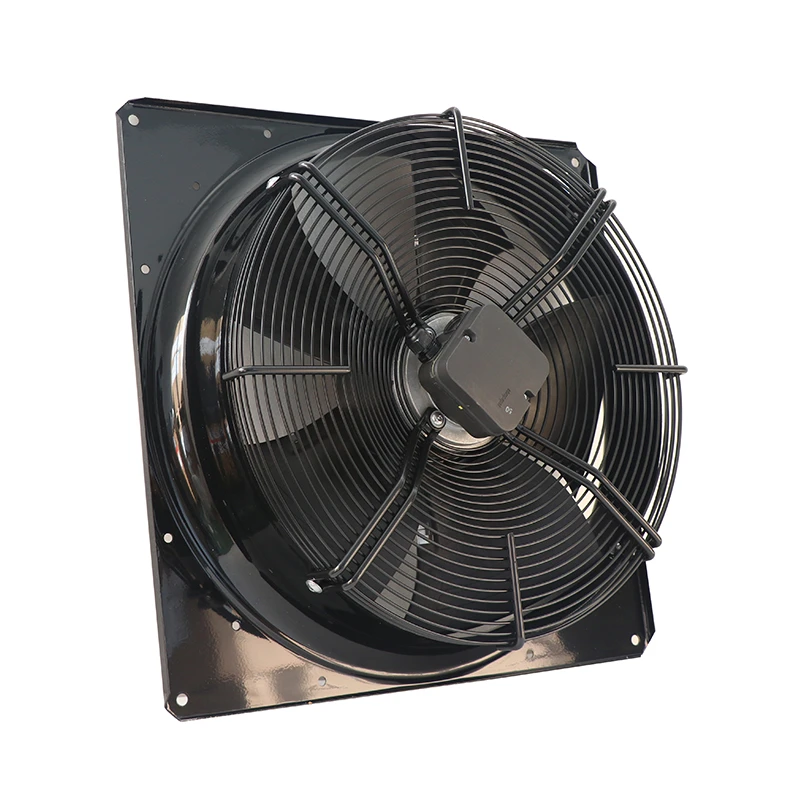

W4D500-CM01-80 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: W4D500-CM01-80 | ebm-papst 480V 870W AC Axial Fan for Air Handling Cooling

Type:: Axial Fans

Industry:: HVAC & Ventilation

Description:: Developed for Air Handling Cooling, ebm-papst W4D500-CM01-80 is a 480 V AC axial fan, rated with a documented 870 W input rating. This helps guide installation planning. Its documented data supports integration planning.

Datasheet:: W4D500-CM01-80 | ebm-papst 480V 870W AC Axial Fan for Air Handling Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	480
Size(mm)	500
Max.Air Flow(m³/h)	10475
Input Power(W)	870
Speed(rpm)	1650
Noise(db)	77

Product Features

High Airflow Cooling

The ebm-papst W4D500-CM01-80 is an AC axial fan for hvac systems, moving heat away from enclosed components through a controlled ventilation path.

Data includes 480 V operation and airflow up to 10475 m³/h for selecting a practical balance between air delivery and flow-path restriction. Listed noise is 77 dB at the stated test point. The datasheet lists ball-bearing support, IP54 protection for durable motor support. A suitable electrical match and clean airflow entry reduce avoidable losses and support dependable long-term duty.

Its product-level documentation strengthens lifecycle planning for installed equipment with clearer fit and interface checks. This evidence-based approach helps purchasers compare fit, duty and integration requirements before ordering.

Application Industry

HVAC Systems

The W4D500-CM01-80 ebm-papst fan is used in HVAC equipment to move air through internal passages and heat-exchange sections, supporting ventilation, temperature control and dependable system operation.

Frequently Asked Questions

How should buyers select the W4D500-CM01-80 for an operating point?

Match required airflow and pressure on the exact performance curve, then verify voltage, power, dimensions and environmental limits.

Does the W4D500-CM01-80 support speed control?

Control capability and input method must be confirmed in the exact-model datasheet and wiring diagram; do not infer them from the fan family alone.

What compliance information is supplied for the W4D500-CM01-80?

The workbook marks the product RoHS Compliant. Obtain the exact-model declaration and any project-specific approvals required by the destination market.
