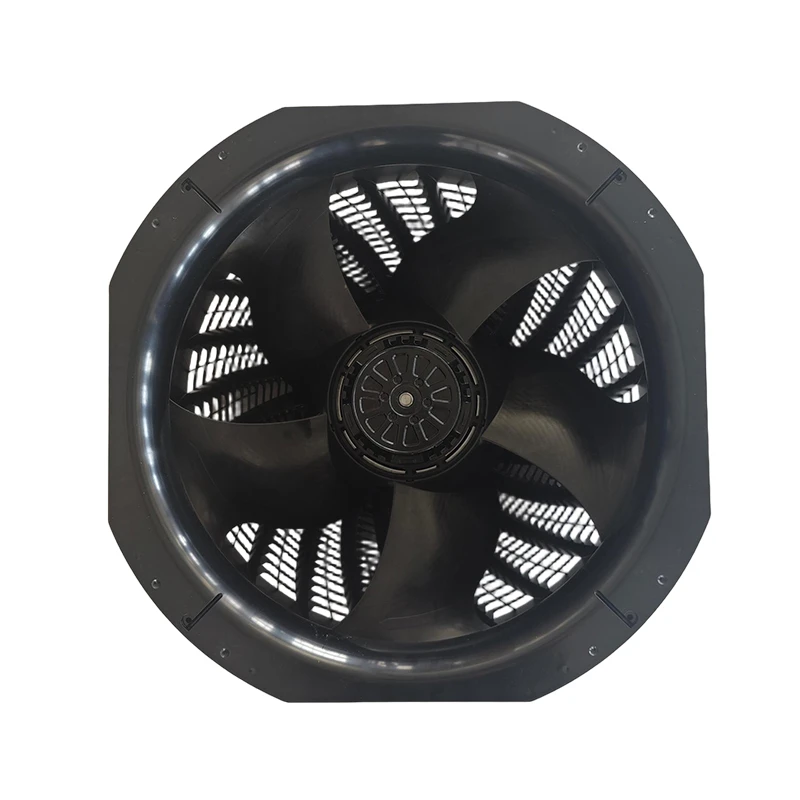

W4D500-ZL09-01 ebm-papst Axial Fan

Brand :: ebmpapst

Model:: W4D500-ZL09-01 | ebm-papst 480V 1090W AC Axial Fan for Refrigeration Cooling

Type:: Axial Fans

Industry:: Refrigeration Equipment

Description:: Specified for Refrigeration Cooling, ebm-papst W4D500-ZL09-01 is a 480 V AC axial fan, supported by a listed pressure capability of 240 Pa. This supports duty-point selection. Its documented data supports integration planning.

Datasheet:: W4D500-ZL09-01 | ebm-papst 480V 1090W AC Axial Fan for Refrigeration Cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	480
Size(mm)	500
Max.Air Flow(m³/h)	10225
Max.Pressure(Pa)	240
Input Power(W)	1090
Speed(rpm)	1560
Noise(db)	73

Product Features

High Static Airflow

The ebm-papst W4D500-ZL09-01 is an AC axial fan for refrigeration cooling, providing an engineered ventilation path for machinery and electronic assemblies.

Data includes 480 V operation, airflow up to 10225 m³/h and pressure up to 240 Pa for selecting a practical balance between air delivery and flow-path restriction. The datasheet lists ball-bearing support, IP54 protection for durable motor support. Listed noise is 73 dB at the stated test point. Correct installation conditions help convert documented performance into reliable equipment-level heat removal.

The documented profile strengthens lifecycle planning for installed equipment before the final design-in decision. Its technical record supports consistent model identification during sourcing and lifecycle service work.

Application Industry

Refrigeration Cooling

The W4D500-ZL09-01 ebm-papst fan is suitable for refrigeration and cooling equipment where forced airflow supports heat rejection, component protection and stable operation under recurring thermal loads.

Frequently Asked Questions

What is the representative feature of the W4D500-ZL09-01?

The supplied comparison identifies a listed pressure capability of 240 Pa; review it together with the other listed ratings rather than as a standalone selection criterion.

What distinguishes the W4D500-ZL09-01 from a general-purpose fan?

Its AC axial fan configuration and a listed pressure capability of 240 Pa provide model-specific criteria for matching Refrigeration Cooling systems.

Does the W4D500-ZL09-01 support speed control?

Control capability and input method must be confirmed in the exact-model datasheet and wiring diagram; do not infer them from the fan family alone.
