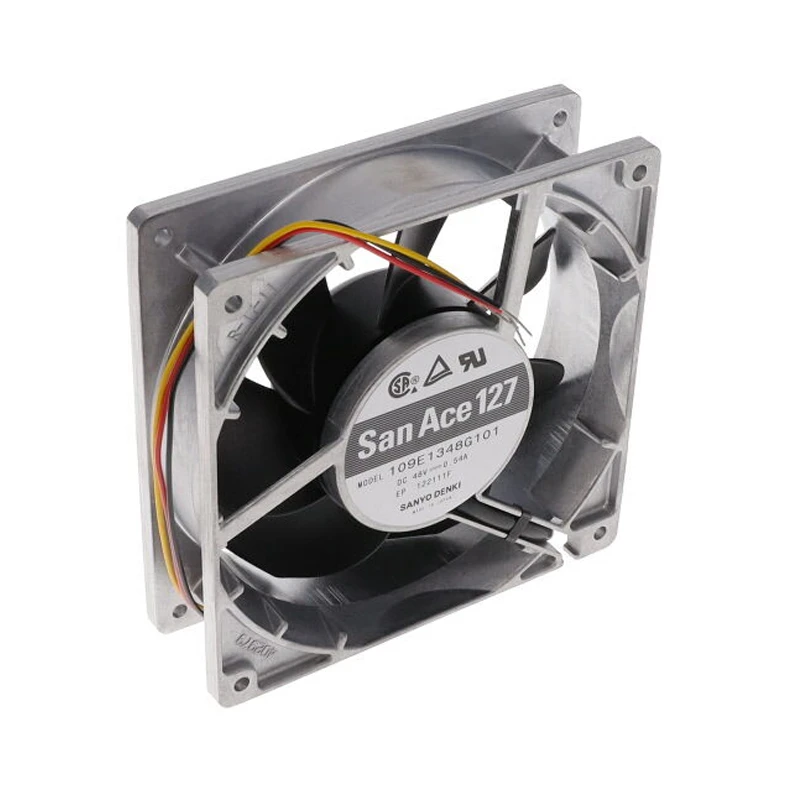

109E1348G101 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109E1348G101 | Sanyo Denki 48VDC 25.9W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki configures 109E1348G101 for servers, UPS systems, and telecom equipment as a 48 VDC DC axial fan with 127 × 127 × 38 mm dimensions. Its listed airflow of 340 m³/h is the standout performance value. During cooling-margin review, compare the model's equipment fit. Use the latest specification for frequency and tolerance limits.

Datasheet:: 109E1348G101 | Sanyo Denki 48VDC 25.9W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	48
Size(mm)	12712738
Max.Air Flow(m³/h)	340
Max.Pressure(Pa)	216
Input Power(W)	25.9
Speed(rpm)	4550
Noise(db)	57

Product Features

High Airflow Design

109E1348G101 is intended for dependable forced-air cooling in servers, storage systems and ICT equipment. This SANYO DENKI DC axial fan fits equipment designs where thermal stability affects service continuity.

With up to 340 m3/h airflow and 216 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Its counter-rotating airflow architecture is intended for demanding pressure duty in space-constrained electronic systems. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Map airflow around the hottest components. The review links cooling performance to the approved BOM.

Application Industry

Server Cooling

The San Ace 109E1348G101 supports thermal management in server chassis and computing nodes. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

Storage Systems

For storage arrays and data appliances, 109E1348G101 provides a dedicated forced-air cooling path. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

ICT Equipment

SANYO DENKI 109E1348G101 serves network and other ICT hardware that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

How noisy is 109E1348G101?

The worksheet lists 57 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

What should be checked if 109E1348G101 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What should procurement confirm for 109E1348G101?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

Which specifications define 109E1348G101?

Use rated voltage, 127 × 127 × 38 mm dimensions, 340 m³/h airflow, 4550 rpm, and 25.9 W input for preliminary comparison.

Is 109E1348G101 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

What IP protection is documented for 109E1348G101?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.
