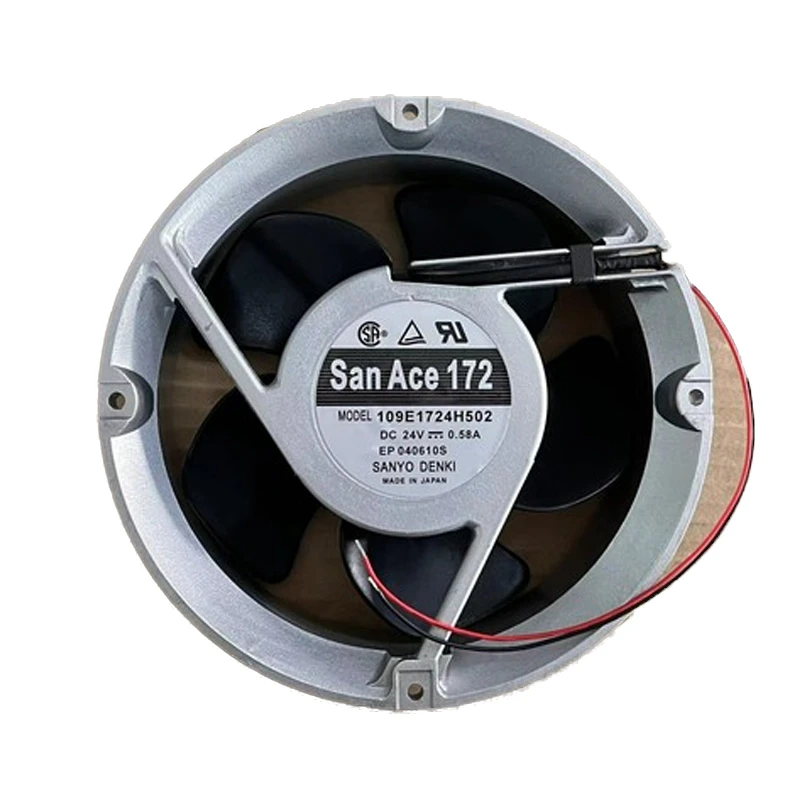

109E1724H502 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109E1724H502 | Sanyo Denki 24VDC 13.92W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Within servers, UPS systems, and telecom equipment, 109E1724H502 provides a ø172 × 51 mm, 24 VDC DC axial fan configuration. High airflow is highlighted together with a high-static-pressure design. Its listed airflow of 384 m³/h is the standout performance value. Check power budget review dimensional envelope. Focus: power budget review.

Datasheet:: 109E1724H502 | Sanyo Denki 24VDC 13.92W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	ø172*51
Max.Air Flow(m³/h)	384
Max.Pressure(Pa)	137.2
Input Power(W)	13.92
Speed(rpm)	3050
Noise(db)	47

Product Features

Stable San Ace Fan

SANYO DENKI positions 109E1724H502 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

Its 384 m3/h maximum airflow supports rapid air exchange, while 137.2 Pa pressure capability helps overcome resistance within the finished equipment. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Check startup demand against the power supply. It helps engineering and procurement use one specification. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

SANYO DENKI 109E1724H502 serves server chassis and computing nodes that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation.

Storage Systems

109E1724H502 is suitable for storage arrays and data appliances. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation. Selection should follow the approved full model code.

ICT Equipment

The San Ace 109E1724H502 supports thermal management in network and other ICT hardware. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation.

Frequently Asked Questions

Is 109E1724H502 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

Which application details matter most for 109E1724H502?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What maintenance does 109E1724H502 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Why choose 109E1724H502 instead of a standard fan?

Its 24 VDC rating and documented its listed airflow of 384 m³/h is the standout performance value. provide model-specific selection data without relying on unlisted claims.

What input power is listed for 109E1724H502?

The worksheet lists 13.92 W. Check supply capacity and operating conditions before commissioning.

Can 109E1724H502 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.
