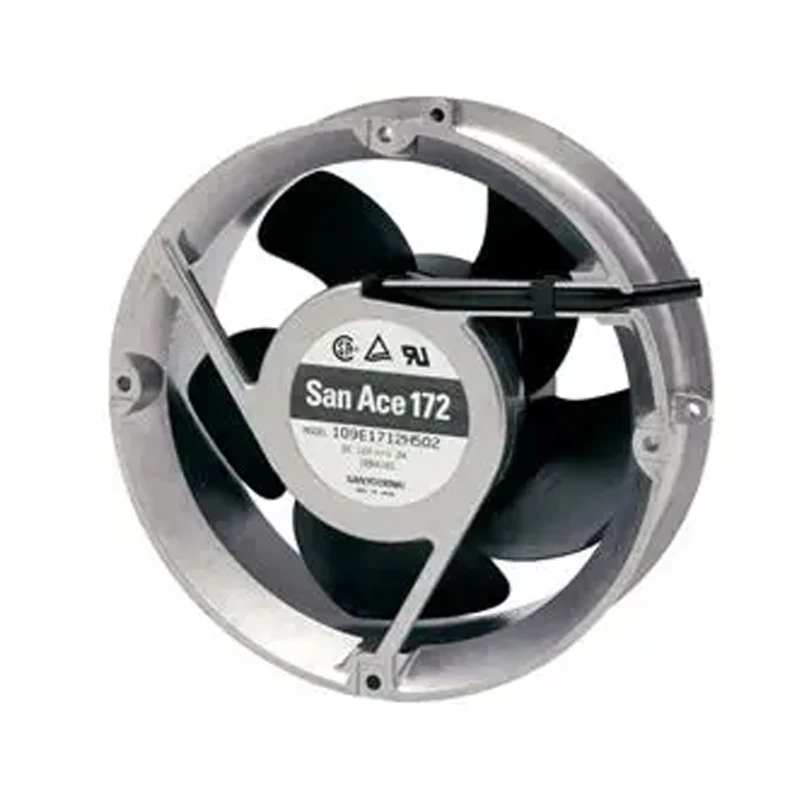

109E1724K502 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109E1724K502 | Sanyo Denki 24VDC 31.2W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki configures 109E1724K502 for servers, UPS systems, and telecom equipment as a 24 VDC DC axial fan with size not stated dimensions. Its listed airflow of 504 m³/h is the standout performance value. Base wiring review on the stated catalog specification. Match the exact part number before approving a substitute.

Datasheet:: 109E1724K502 | Sanyo Denki 24VDC 31.2W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Max.Air Flow(m³/h)	504
Max.Pressure(Pa)	243
Input Power(W)	31.2
Speed(rpm)	4100
Noise(db)	55

Product Features

Pressure Cooling

The SANYO DENKI 109E1724K502 is a DC axial fan developed for servers, storage systems and ICT equipment. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

A listed maximum airflow of 504 m3/h and maximum pressure of 243 Pa give engineers a clear basis for matching the fan to enclosure resistance. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Allow service access for fan replacement. The review links cooling performance to the approved BOM. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

109E1724K502 is suitable for server chassis and computing nodes. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. The application supports stable equipment service. Selection should follow the approved full model code.

Storage Systems

The San Ace 109E1724K502 supports thermal management in storage arrays and data appliances. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. The application supports stable equipment service.

ICT Equipment

For network and other ICT hardware, 109E1724K502 provides a dedicated forced-air cooling path. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. The application supports stable equipment service.

Frequently Asked Questions

Why choose 109E1724K502 instead of a standard fan?

Its 24 VDC rating and documented its listed airflow of 504 m³/h is the standout performance value. provide model-specific selection data without relying on unlisted claims.

How noisy is 109E1724K502?

The worksheet lists 55 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

What speed is listed for 109E1724K502?

The listed speed is 4100 rpm. Confirm control conditions and the actual duty point.

What bearing type does 109E1724K502 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

Does 109E1724K502 have a pressure rating?

The worksheet lists 243 Pa. Use the official curve to match it to system resistance.
