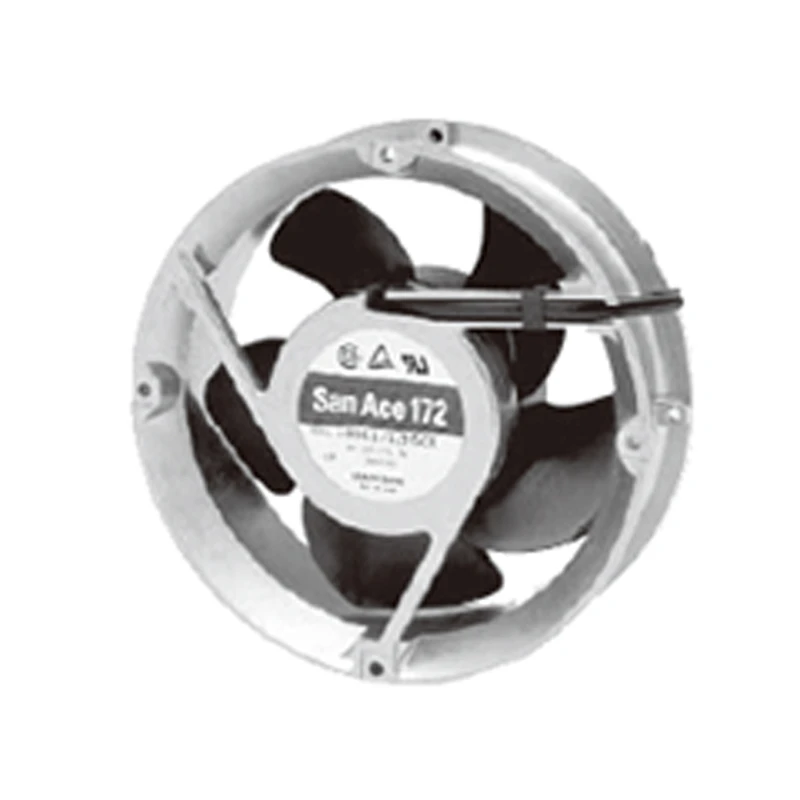

109E1724M501 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109E1724M501 | Sanyo Denki 24VDC 4.8W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: 109E1724M501 addresses servers, UPS systems, and telecom equipment through a 24 VDC DC axial fan platform measuring ø172 × 51 mm. High airflow is highlighted together with a high-static-pressure design. Its 2000 rpm rating defines a lower-speed operating point. Check wiring scheme review cooling output. Focus: wiring scheme review cooling output.

Datasheet:: 109E1724M501 | Sanyo Denki 24VDC 4.8W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	ø172*51
Max.Air Flow(m³/h)	251.6
Max.Pressure(Pa)	67.6
Input Power(W)	4.8
Speed(rpm)	2000
Noise(db)	36

Product Features

High Airflow Design

SANYO DENKI positions 109E1724M501 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

Its 251.6 m3/h maximum airflow supports rapid air exchange, while 67.6 Pa pressure capability helps overcome resistance within the finished equipment. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Preserve outlet space to limit recirculation. It supports a clear fan specification for future servicing. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

SANYO DENKI 109E1724M501 serves server chassis and computing nodes that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

Storage Systems

109E1724M501 is suitable for storage arrays and data appliances. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service. Selection should follow the approved full model code.

ICT Equipment

The San Ace 109E1724M501 supports thermal management in network and other ICT hardware. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service.

Frequently Asked Questions

What input power is listed for 109E1724M501?

The worksheet lists 4.8 W. Check supply capacity and operating conditions before commissioning.

What should be checked if 109E1724M501 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What bearing type does 109E1724M501 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

Which specifications define 109E1724M501?

Use rated voltage, ø172 × 51 mm dimensions, 251.6 m³/h airflow, 2000 rpm, and 4.8 W input for preliminary comparison.

What certifications apply to 109E1724M501?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

What IP protection is documented for 109E1724M501?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.
