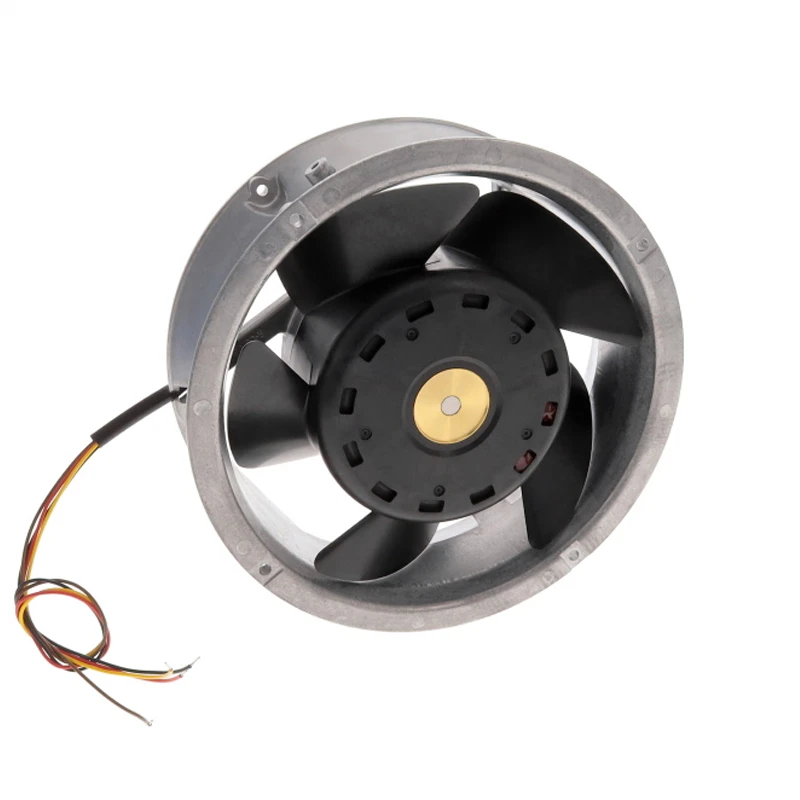

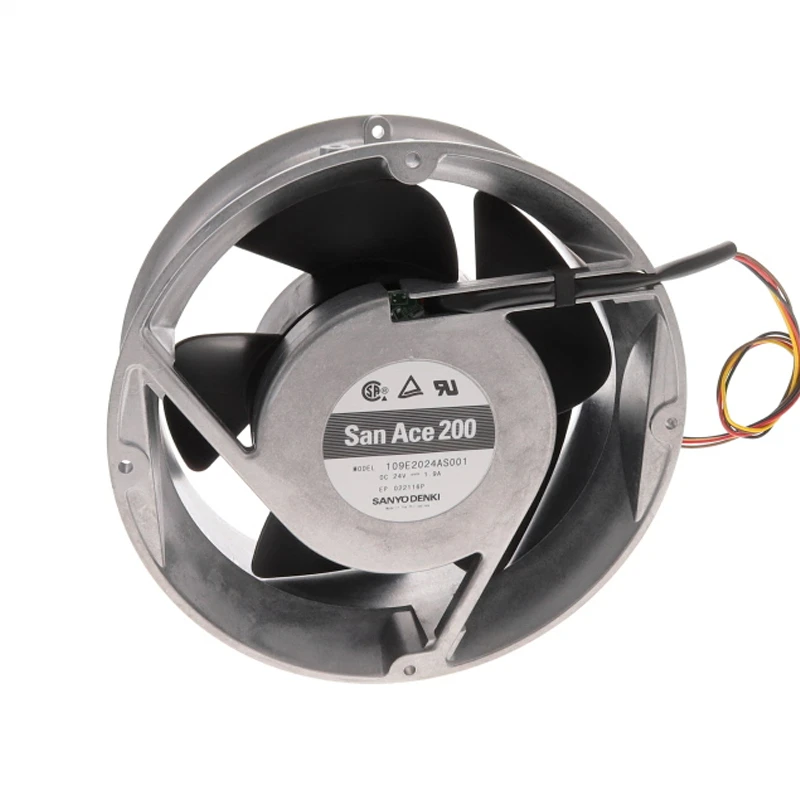

109E2024AS001 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109E2024AS001 | Sanyo Denki 24VDC 45.6W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: A φ200 × 70 mm frame and 24 VDC rating define 109E2024AS001, a DC axial fan for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. Its listed airflow of 534 m³/h is the standout performance value. Check service access planning sound level. Focus: service access planning sound level.

Datasheet:: 109E2024AS001 | Sanyo Denki 24VDC 45.6W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	φ200*70
Max.Air Flow(m³/h)	534
Max.Pressure(Pa)	287.1
Input Power(W)	45.6
Speed(rpm)	3200
Noise(db)	57

Product Features

High Airflow Design

SANYO DENKI positions 109E2024AS001 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

Its 534 m3/h maximum airflow supports rapid air exchange, while 287.1 Pa pressure capability helps overcome resistance within the finished equipment. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Qualify performance with the production guard. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

SANYO DENKI 109E2024AS001 serves server chassis and computing nodes that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

Storage Systems

109E2024AS001 is suitable for storage arrays and data appliances. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration. Selection should follow the approved full model code.

ICT Equipment

The San Ace 109E2024AS001 supports thermal management in network and other ICT hardware. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

Is 109E2024AS001 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

Which application details matter most for 109E2024AS001?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What airflow is listed for 109E2024AS001?

The worksheet lists 534 m³/h. Compare the operating point with system resistance and the official performance curve.

What is the lead time for 109E2024AS001?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

How noisy is 109E2024AS001?

The worksheet lists 57 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

Can 109E2024AS001 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.
