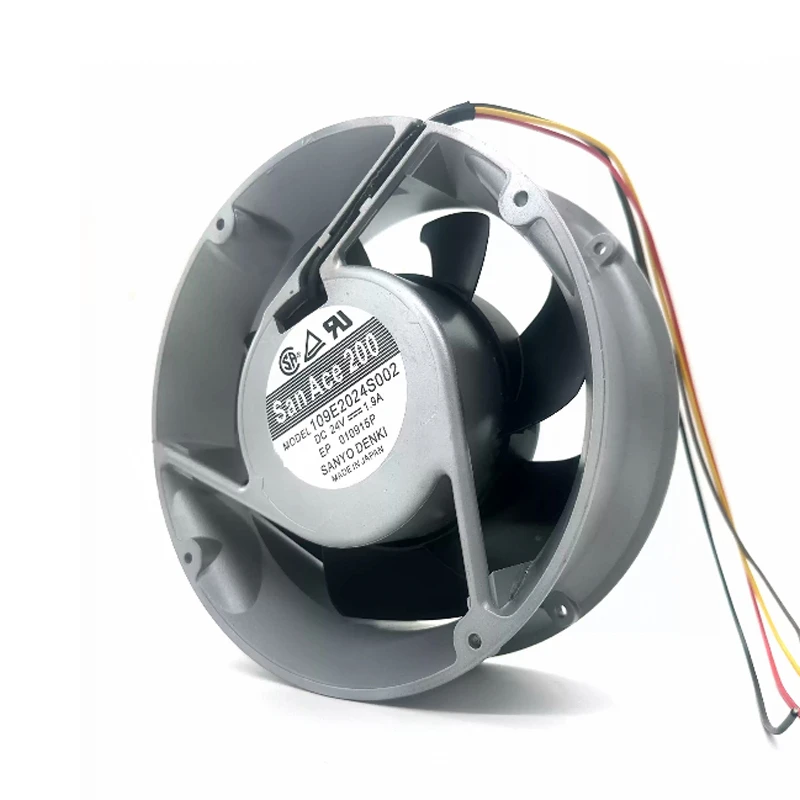

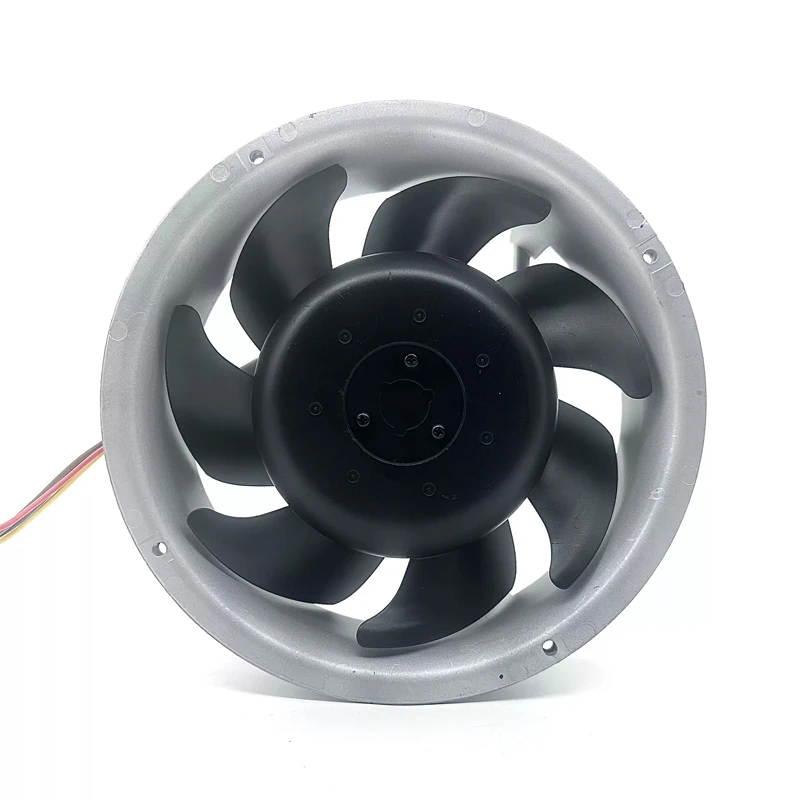

109E2024S002 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109E2024S002 | Sanyo Denki 24VDC 45.6W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The φ200 × 70 mm Sanyo Denki 109E2024S002 brings 24 VDC DC axial fan cooling to servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. For spares assessment, start with the supplied selection parameters. Use the latest specification for frequency and tolerance limits.

Datasheet:: 109E2024S002 | Sanyo Denki 24VDC 45.6W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	φ200*70
Max.Air Flow(m³/h)	627.3
Max.Pressure(Pa)	287.1
Input Power(W)	45.6
Speed(rpm)	3200
Noise(db)	57

Product Features

Pressure Cooling

109E2024S002 is intended for dependable forced-air cooling in servers, storage systems and ICT equipment. This SANYO DENKI DC axial fan fits equipment designs where thermal stability affects service continuity.

A listed maximum airflow of 627.3 m3/h and maximum pressure of 287.1 Pa give engineers a clear basis for matching the fan to enclosure resistance. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Confirm the operating environment for the suffix. It helps maintenance teams plan compatible replacements. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

109E2024S002 is suitable for server chassis and computing nodes. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration. Selection should follow the approved full model code.

Storage Systems

The San Ace 109E2024S002 supports thermal management in storage arrays and data appliances. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

ICT Equipment

For network and other ICT hardware, 109E2024S002 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

Is 109E2024S002 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

How should 109E2024S002 be matched to an enclosure?

Check its φ200 × 70 mm size, 627.3 m³/h airflow, 287.1 Pa pressure, mounting points, airflow direction, and system resistance.

What certifications apply to 109E2024S002?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Which application details matter most for 109E2024S002?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What airflow is listed for 109E2024S002?

The worksheet lists 627.3 m³/h. Compare the operating point with system resistance and the official performance curve.
