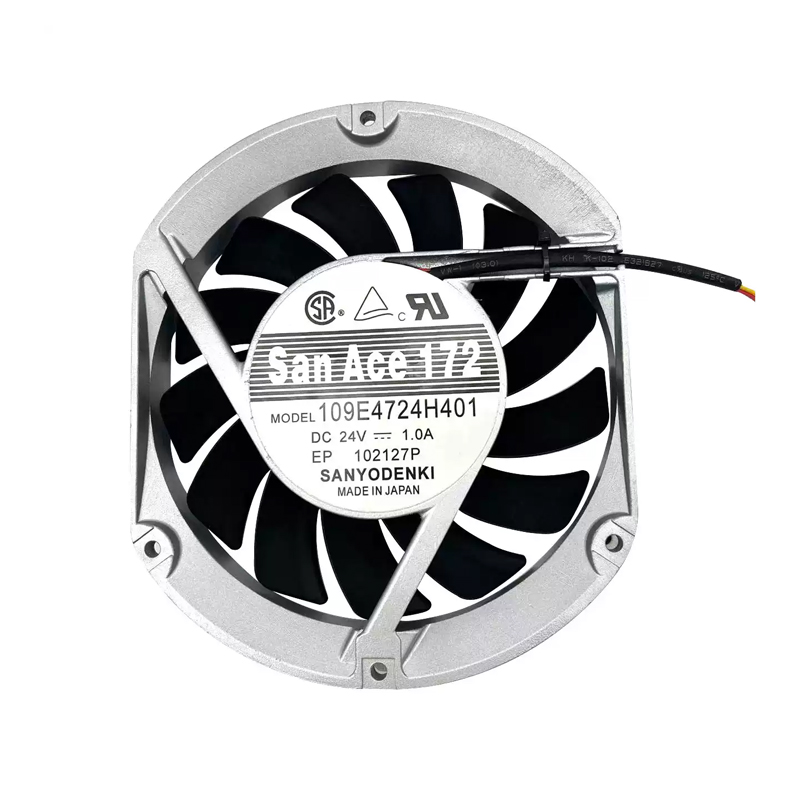

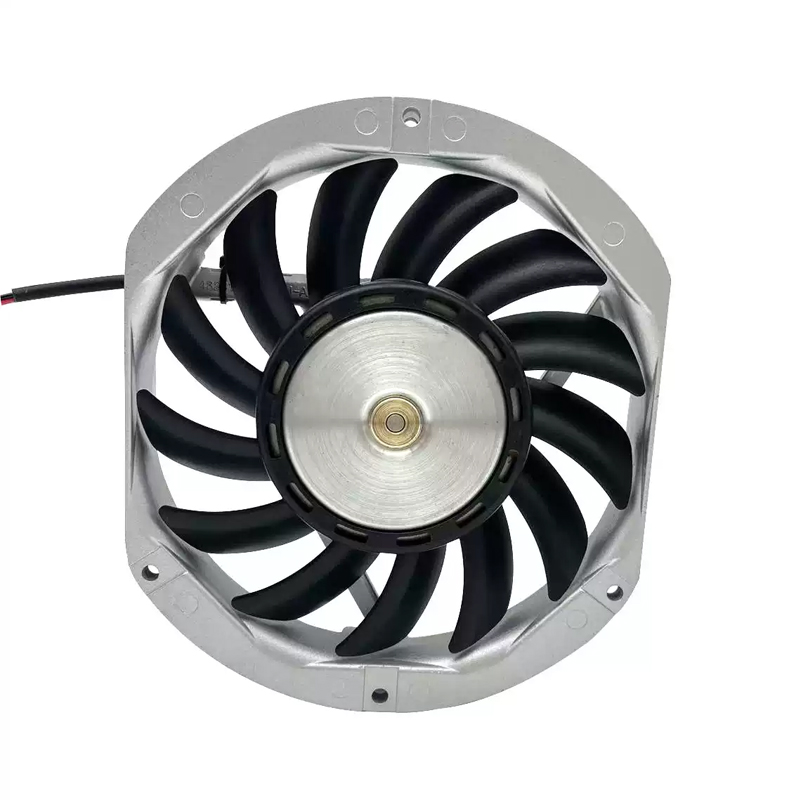

109E4724H401 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109E4724H401 | Sanyo Denki 24VDC 24W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 109E4724H401 is a Sanyo Denki 24 VDC, φ172 × 25 mm DC axial fan for servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. During power-budget planning, compare the model's suffix definition. Review connector, alarm, and sensor options separately. Focus: acoustic limit assessment power demand.

Datasheet:: 109E4724H401 | Sanyo Denki 24VDC 24W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	φ172*25
Max.Air Flow(m³/h)	384
Max.Pressure(Pa)	135
Input Power(W)	24
Speed(rpm)	3400
Noise(db)	57

Product Features

High Airflow Design

For servers, storage systems and ICT equipment, the SANYO DENKI 109E4724H401 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

With up to 384 m3/h airflow and 135 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Check startup demand against the power supply. This keeps sourcing decisions tied to validated system needs. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 109E4724H401 supports thermal management in server chassis and computing nodes. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. The application supports stable equipment service.

Storage Systems

For storage arrays and data appliances, 109E4724H401 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. The application supports stable equipment service.

ICT Equipment

SANYO DENKI 109E4724H401 serves network and other ICT hardware that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. The application supports stable equipment service.

Frequently Asked Questions

How should 109E4724H401 be matched to an enclosure?

Check its φ172 × 25 mm size, 384 m³/h airflow, 135 Pa pressure, mounting points, airflow direction, and system resistance.

What equipment is 109E4724H401 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

What IP protection is documented for 109E4724H401?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

What maintenance does 109E4724H401 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Can 109E4724H401 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

How noisy is 109E4724H401?

The worksheet lists 57 dB. Enclosure acoustics, system resistance, and distance can change the installed result.
