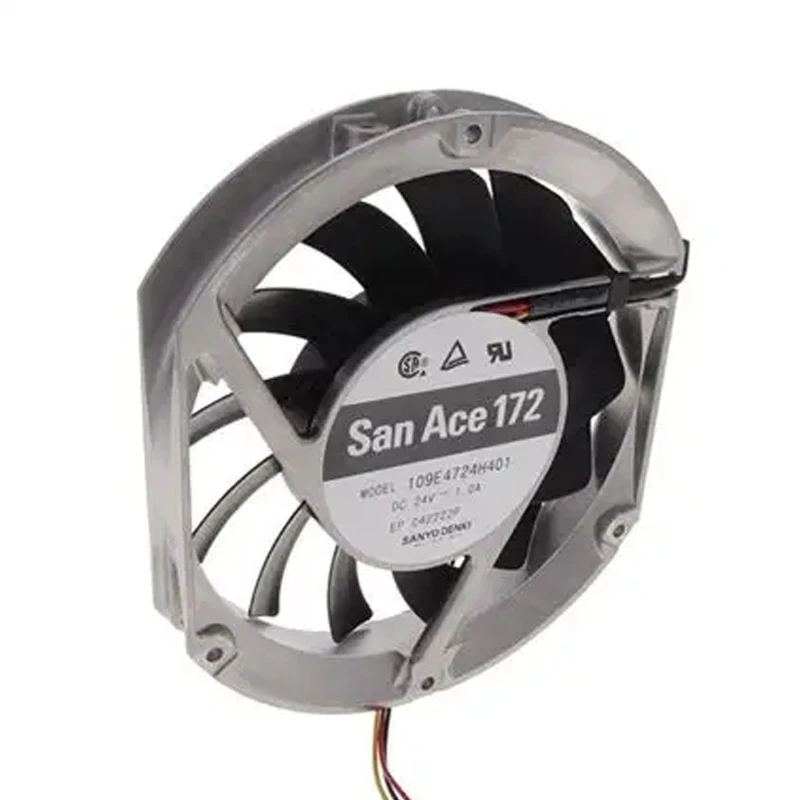

109E4724H4D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109E4724H4D01 | Sanyo Denki 24VDC 24W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: For servers, UPS systems, and telecom equipment, 109E4724H4D01 combines 24 VDC operation with a 172 × 147 × 25.4 mm DC axial fan design. Series focus: high airflow and pressure. Its listed airflow of 379.8 m³/h is the standout performance value. Check lifecycle requirement review installation footprint. Focus: lifecycle requirement review.

Datasheet:: 109E4724H4D01 | Sanyo Denki 24VDC 24W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	17214725.4
Max.Air Flow(m³/h)	379.8
Max.Pressure(Pa)	135
Input Power(W)	24
Speed(rpm)	3400
Noise(db)	57

Product Features

Low Vibration Fan

The San Ace 109E4724H4D01 serves servers, storage systems and ICT equipment as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

A listed maximum airflow of 379.8 m3/h and maximum pressure of 135 Pa give engineers a clear basis for matching the fan to enclosure resistance. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Review airflow direction before design release. It also creates a clearer thermal approval record. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

109E4724H4D01 is suitable for server chassis and computing nodes. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation. Selection should follow the approved full model code.

Storage Systems

The San Ace 109E4724H4D01 supports thermal management in storage arrays and data appliances. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation.

ICT Equipment

For network and other ICT hardware, 109E4724H4D01 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation.

Frequently Asked Questions

What should be checked if 109E4724H4D01 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What bearing type does 109E4724H4D01 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

Which specifications define 109E4724H4D01?

Use rated voltage, 172 × 147 × 25.4 mm dimensions, 379.8 m³/h airflow, 3400 rpm, and 24 W input for preliminary comparison.

What certifications apply to 109E4724H4D01?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Which application details matter most for 109E4724H4D01?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.
