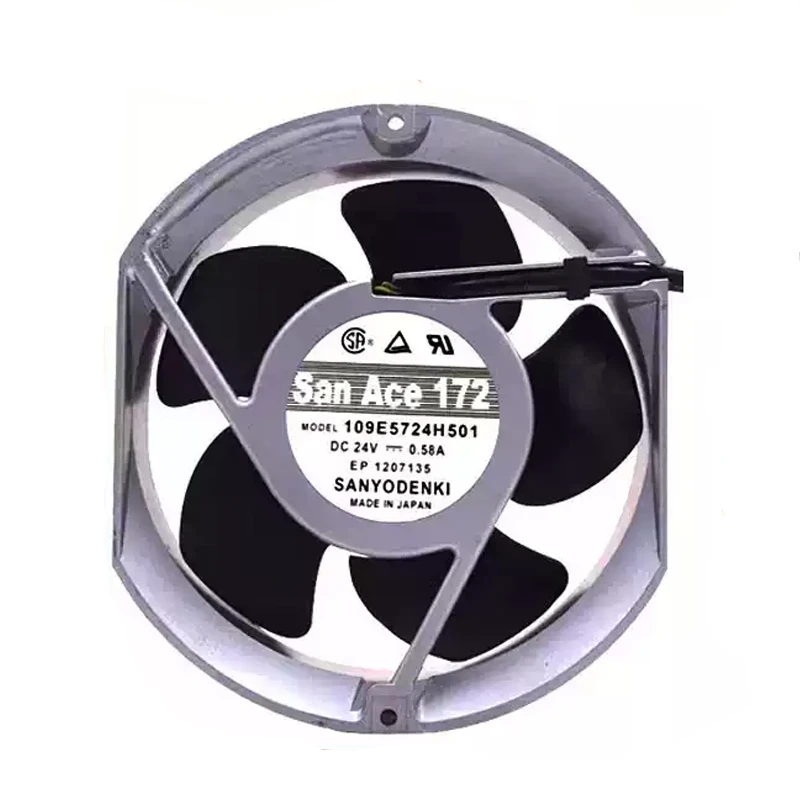

109E5724H501 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109E5724H501 | Sanyo Denki 24VDC 13.92W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 24 VDC Sanyo Denki 109E5724H501 is a DC axial fan sized 172 × 150 × 51 mm for servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. Its listed airflow of 384 m³/h is the standout performance value. Check cabinet ventilation planning installation footprint. Focus: cabinet ventilation planning.

Datasheet:: 109E5724H501 | Sanyo Denki 24VDC 13.92W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	17215051
Max.Air Flow(m³/h)	384
Max.Pressure(Pa)	137.2
Input Power(W)	13.92
Speed(rpm)	3050
Noise(db)	52

Product Features

Efficient Cooling

The SANYO DENKI 109E5724H501 is a DC axial fan developed for servers, storage systems and ICT equipment. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

With up to 384 m3/h airflow and 137.2 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Confirm inlet clearance around nearby cables. The result supports repeatable OEM assembly. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 109E5724H501 supports thermal management in server chassis and computing nodes. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

Storage Systems

For storage arrays and data appliances, 109E5724H501 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

ICT Equipment

SANYO DENKI 109E5724H501 serves network and other ICT hardware that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

What IP protection is documented for 109E5724H501?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

What airflow is listed for 109E5724H501?

The worksheet lists 384 m³/h. Compare the operating point with system resistance and the official performance curve.

What is the lead time for 109E5724H501?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What supply voltage does 109E5724H501 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

What speed is listed for 109E5724H501?

The listed speed is 3050 rpm. Confirm control conditions and the actual duty point.

What should procurement confirm for 109E5724H501?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.
