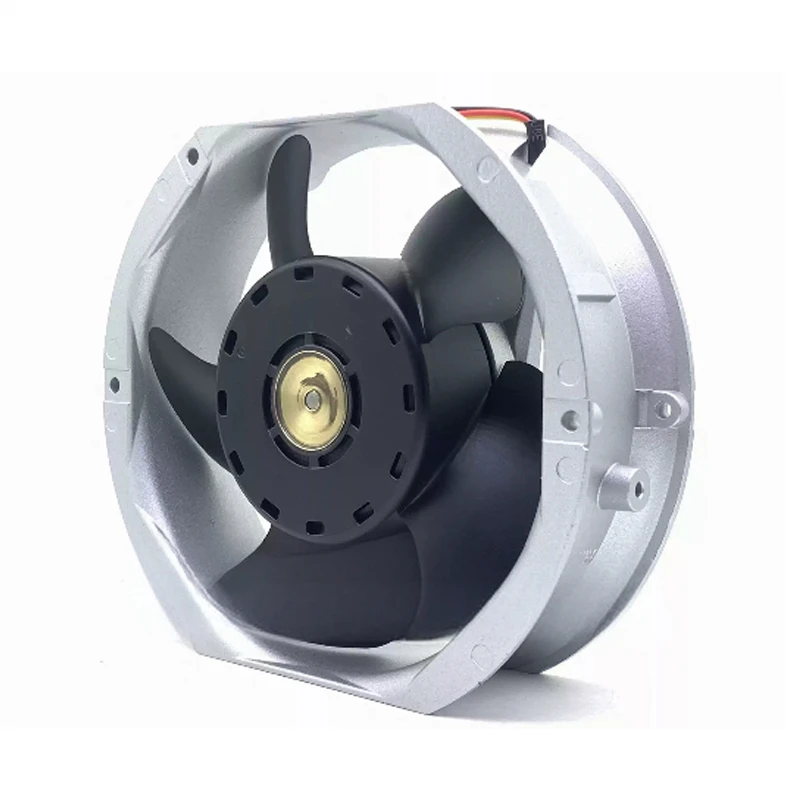

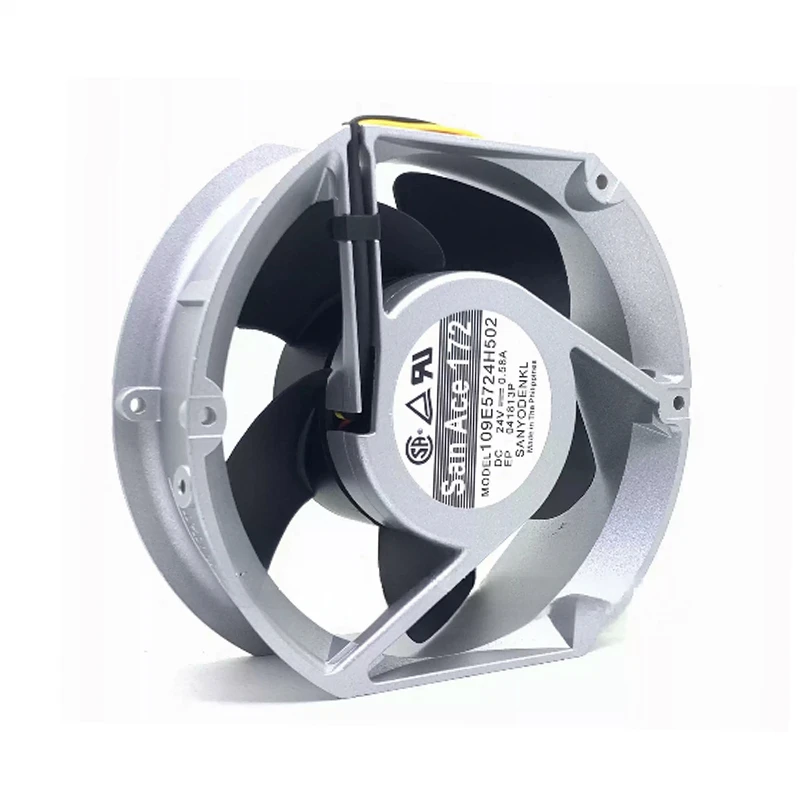

109E5724H502 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109E5724H502 | Sanyo Denki 24VDC 13.92W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki configures 109E5724H502 for servers, UPS systems, and telecom equipment as a 24 VDC DC axial fan with 172 × 150 × 51 mm dimensions. Its listed airflow of 384 m³/h is the standout performance value. Base power-budget planning on the stated operating point. Validate mounting and wiring from the model drawing.

Datasheet:: 109E5724H502 | Sanyo Denki 24VDC 13.92W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	17215051
Max.Air Flow(m³/h)	384
Max.Pressure(Pa)	137.2
Input Power(W)	13.92
Speed(rpm)	3050
Noise(db)	52

Product Features

Efficient Cooling

109E5724H502 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

With up to 384 m3/h airflow and 137.2 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Check exhaust separation from the intake zone. The result supports repeatable OEM assembly. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 109E5724H502 supports thermal management in server chassis and computing nodes. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation.

Storage Systems

For storage arrays and data appliances, 109E5724H502 provides a dedicated forced-air cooling path. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation.

ICT Equipment

SANYO DENKI 109E5724H502 serves network and other ICT hardware that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation.

Frequently Asked Questions

What is the lead time for 109E5724H502?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What input power is listed for 109E5724H502?

The worksheet lists 13.92 W. Check supply capacity and operating conditions before commissioning.

What should be checked if 109E5724H502 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What bearing type does 109E5724H502 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

Which specifications define 109E5724H502?

Use rated voltage, 172 × 150 × 51 mm dimensions, 384 m³/h airflow, 3050 rpm, and 13.92 W input for preliminary comparison.

Is 109E5724H502 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.
