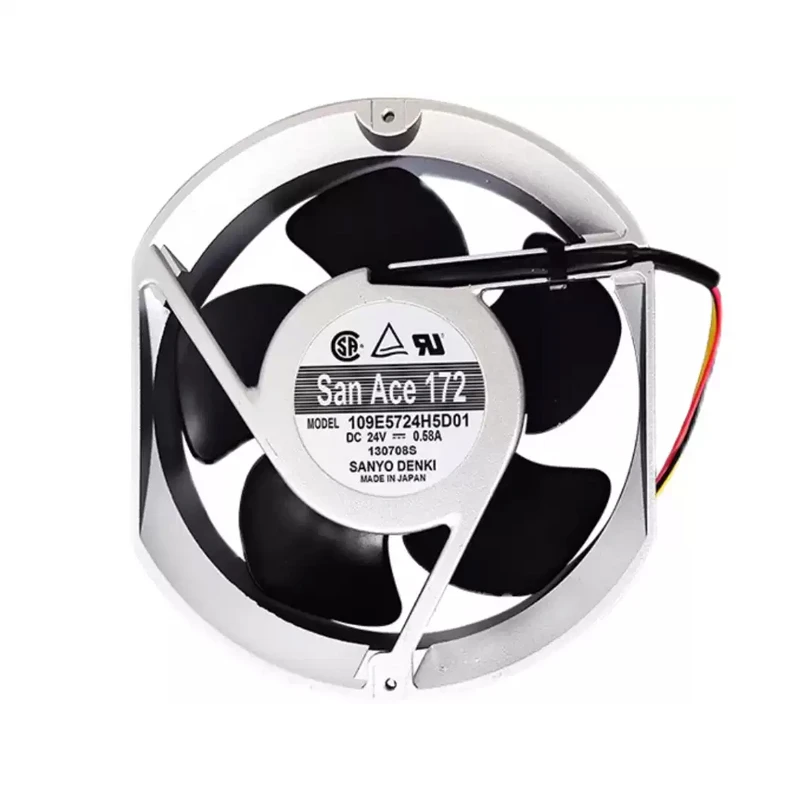

109E5724H5D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109E5724H5D01 | Sanyo Denki 24VDC 13.92W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: For servers, UPS systems, and telecom equipment, 109E5724H5D01 combines 24 VDC operation with a 172 × 150 × 51 mm DC axial fan design. Series focus: high airflow and pressure. Its listed airflow of 379.8 m³/h is the standout performance value. Check airflow path balancing installation footprint. Focus: airflow path balancing installation footprint.

Datasheet:: 109E5724H5D01 | Sanyo Denki 24VDC 13.92W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	24
Size(mm)	17215051
Max.Air Flow(m³/h)	379.8
Max.Pressure(Pa)	137.2
Input Power(W)	13.92
Speed(rpm)	3050
Noise(db)	52

Product Features

Low Vibration Fan

For servers, storage systems and ICT equipment, the SANYO DENKI 109E5724H5D01 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

The rated peak airflow of 379.8 m3/h combines with 137.2 Pa pressure capability to support useful flow after installation losses are considered. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Include filter loading in the airflow margin. This gives purchasing a controlled replacement reference. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

For server chassis and computing nodes, 109E5724H5D01 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

Storage Systems

SANYO DENKI 109E5724H5D01 serves storage arrays and data appliances that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

ICT Equipment

109E5724H5D01 is suitable for network and other ICT hardware. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration. Selection should follow the approved full model code.

Frequently Asked Questions

What bearing type does 109E5724H5D01 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

How should 109E5724H5D01 be matched to an enclosure?

Check its 172 × 150 × 51 mm size, 379.8 m³/h airflow, 137.2 Pa pressure, mounting points, airflow direction, and system resistance.

What equipment is 109E5724H5D01 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Which application details matter most for 109E5724H5D01?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What airflow is listed for 109E5724H5D01?

The worksheet lists 379.8 m³/h. Compare the operating point with system resistance and the official performance curve.
