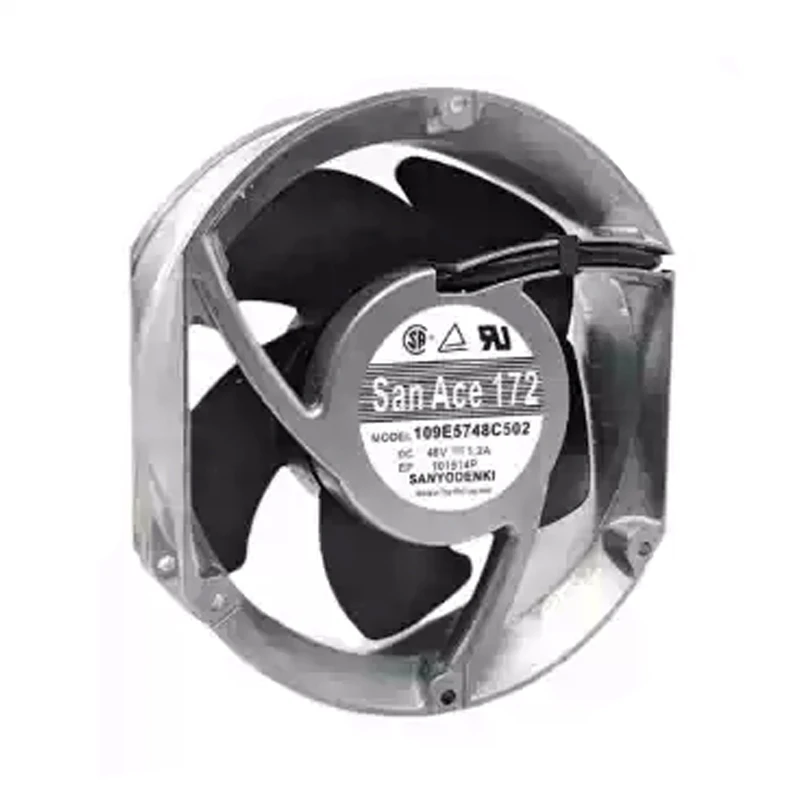

109E5748C502 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109E5748C502 | Sanyo Denki 48VDC 57.6W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: 109E5748C502 serves servers, UPS systems, and telecom equipment as a 172 × 150 × 51 mm DC axial fan rated at 48 VDC. Series focus: high airflow and pressure. Its listed airflow of 594.6 m³/h is the standout performance value. Check thermal margin assessment acoustic value. Focus: thermal margin assessment acoustic value.

Datasheet:: 109E5748C502 | Sanyo Denki 48VDC 57.6W DC Axial Fan for UPS, server and telecom equipment cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	48
Size(mm)	17215051
Max.Air Flow(m³/h)	594.6
Max.Pressure(Pa)	308
Input Power(W)	57.6
Speed(rpm)	4800
Noise(db)	66

Product Features

Pressure Cooling

For servers, storage systems and ICT equipment, the SANYO DENKI 109E5748C502 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

A listed maximum airflow of 594.6 m3/h and maximum pressure of 308 Pa give engineers a clear basis for matching the fan to enclosure resistance. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Include filter loading in the airflow margin. This step reduces uncertainty during equipment qualification. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

109E5748C502 is suitable for server chassis and computing nodes. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

Storage Systems

The San Ace 109E5748C502 supports thermal management in storage arrays and data appliances. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling.

ICT Equipment

For network and other ICT hardware, 109E5748C502 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling.

Frequently Asked Questions

What IP protection is documented for 109E5748C502?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

What maintenance does 109E5748C502 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Can 109E5748C502 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What input power is listed for 109E5748C502?

The worksheet lists 57.6 W. Check supply capacity and operating conditions before commissioning.

Can 109E5748C502 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.
