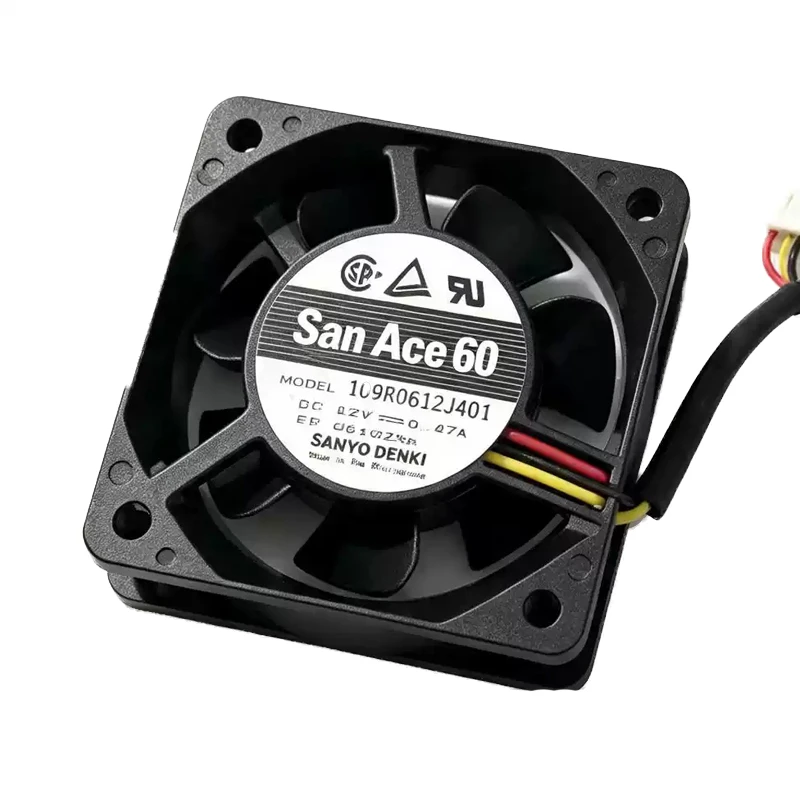

109R0612J401 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0612J401 | Sanyo Denki 12VDC 5.64W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 109R0612J401 is a Sanyo Denki 12 VDC, 60 × 60 × 25 mm DC axial fan for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. For spares assessment, start with the supplied system interface. Verify the exact bearing and signal options in the datasheet. Focus: airflow path balancing.

Product Features

Rated Voltage(V)	12
Size(mm)	606025
Max.Air Flow(m³/h)	63.58
Input Power(W)	5.64
Speed(rpm)	7600
Noise(db)	44

Product Features

Pressure Cooling

109R0612J401 is intended for dependable forced-air cooling in servers, storage systems and ICT equipment. This SANYO DENKI DC axial fan fits equipment designs where thermal stability affects service continuity.

The specified maximum airflow of 63.58 m3/h provides a measurable basis for estimating air exchange and selecting the required cooling margin. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Measure installed sound in the final cabinet. It helps maintenance teams plan compatible replacements. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

109R0612J401 is suitable for server chassis and computing nodes. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration. Selection should follow the approved full model code.

Storage Systems

The San Ace 109R0612J401 supports thermal management in storage arrays and data appliances. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

ICT Equipment

For network and other ICT hardware, 109R0612J401 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

Is 109R0612J401 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

Does 109R0612J401 have a pressure rating?

No pressure value is supplied; request the performance curve if static pressure is important.

What certifications apply to 109R0612J401?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

What IP protection is documented for 109R0612J401?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

What airflow is listed for 109R0612J401?

The worksheet lists 63.58 m³/h. Compare the operating point with system resistance and the official performance curve.
