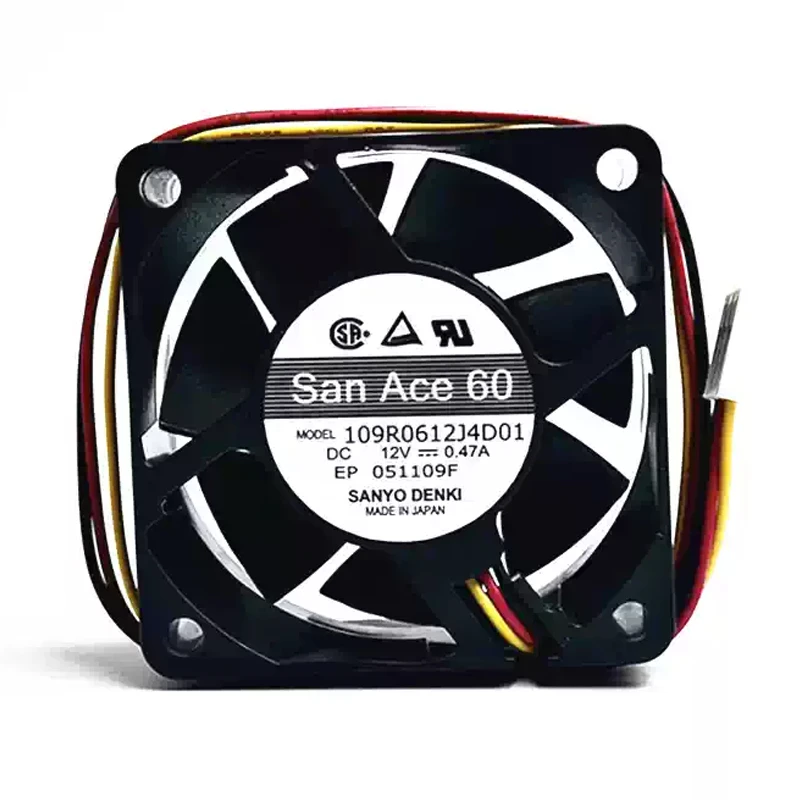

109R0612J4D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0612J4D01 | Sanyo Denki 12VDC 5.64W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki configures 109R0612J4D01 for servers, UPS systems, and telecom equipment as a 12 VDC DC axial fan with 60 × 60 × 25 mm dimensions. 7600 rpm is the model's most prominent operating value. Use the documented airflow profile when planning spares assessment. Treat bearing and life data as suffix-specific.

Product Features

Rated Voltage(V)	12
Size(mm)	606025
Max.Air Flow(m³/h)	62.4
Max.Pressure(Pa)	155
Input Power(W)	5.64
Speed(rpm)	7600
Noise(db)	44

Product Features

High Airflow Design

SANYO DENKI positions 109R0612J4D01 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

Its 62.4 m3/h maximum airflow supports rapid air exchange, while 155 Pa pressure capability helps overcome resistance within the finished equipment. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Assess vibration transfer into enclosure panels. This gives purchasing a controlled replacement reference. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

SANYO DENKI 109R0612J4D01 serves server chassis and computing nodes that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. The application supports stable equipment service.

Storage Systems

109R0612J4D01 is suitable for storage arrays and data appliances. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

ICT Equipment

The San Ace 109R0612J4D01 supports thermal management in network and other ICT hardware. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It supports reliable OEM equipment cooling.

Frequently Asked Questions

What airflow is listed for 109R0612J4D01?

The worksheet lists 62.4 m³/h. Compare the operating point with system resistance and the official performance curve.

What is the lead time for 109R0612J4D01?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

How noisy is 109R0612J4D01?

The worksheet lists 44 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

What speed is listed for 109R0612J4D01?

The listed speed is 7600 rpm. Confirm control conditions and the actual duty point.

Is 109R0612J4D01 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

Does 109R0612J4D01 have a pressure rating?

The worksheet lists 155 Pa. Use the official curve to match it to system resistance.
