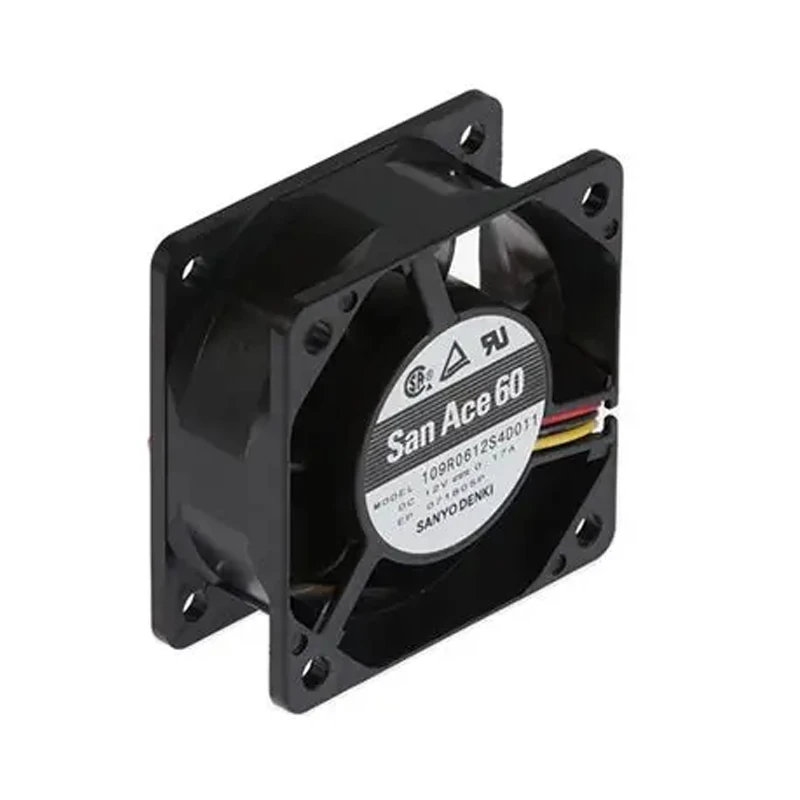

109R0612M4D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0612M4D01 | Sanyo Denki 12VDC DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 109R0612M4D01 is a Sanyo Denki 12 VDC, 60 × 60 × 25 mm DC axial fan for servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. Treat the frame geometry as a primary input to mounting verification. Verify the exact bearing and signal options in the datasheet. Focus: service access planning power demand.

Product Features

Rated Voltage(V)	12
Size(mm)	606025
Max.Air Flow(m³/h)	21.4
Max.Pressure(Pa)	19.6
Speed(rpm)	2600
Noise(db)	20

Product Features

Efficient Cooling

The SANYO DENKI 109R0612M4D01 is a DC axial fan developed for servers, storage systems and ICT equipment. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

With up to 21.4 m3/h airflow and 19.6 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Review airflow direction before design release. The process documents the required installation conditions. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

The San Ace 109R0612M4D01 supports thermal management in server chassis and computing nodes. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

Storage Systems

For storage arrays and data appliances, 109R0612M4D01 provides a dedicated forced-air cooling path. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

ICT Equipment

SANYO DENKI 109R0612M4D01 serves network and other ICT hardware that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

Does 109R0612M4D01 have a pressure rating?

The worksheet lists 19.6 Pa. Use the official curve to match it to system resistance.

What equipment is 109R0612M4D01 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Can 109R0612M4D01 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

What maintenance does 109R0612M4D01 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

What is the lead time for 109R0612M4D01?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What input power is listed for 109R0612M4D01?

Input power is not stated in the supplied row and requires confirmation.
