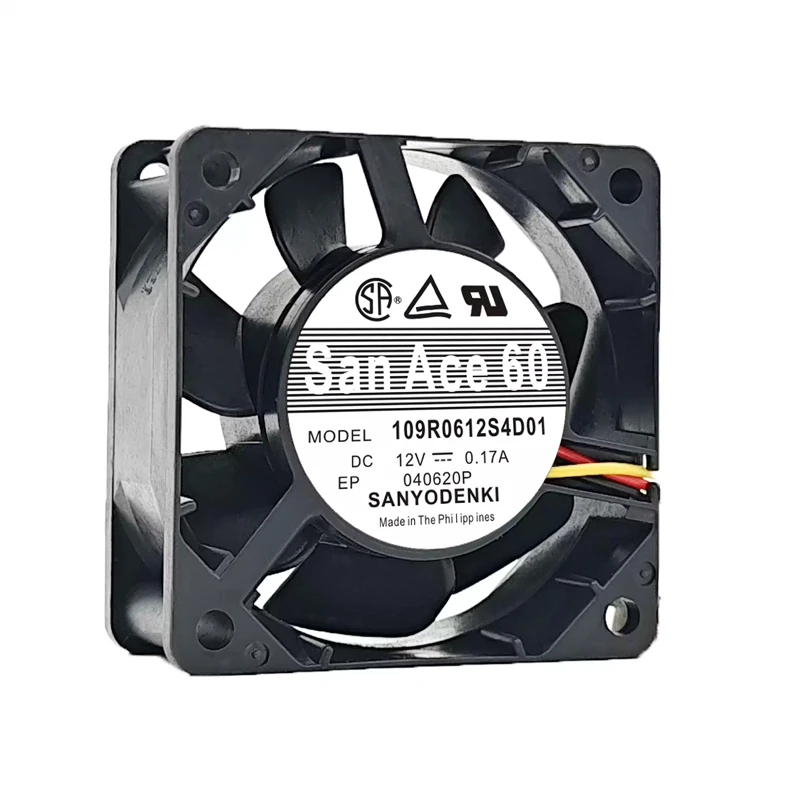

109R0612S4D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0612S4D01 | Sanyo Denki 12VDC 2.04W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki 109R0612S4D01 combines a 60 × 60 × 25 mm DC axial fan platform with a 12 VDC rating for servers, UPS systems, and telecom equipment. The supplied reference emphasizes high static pressure and high airflow. A listed input of 2.04 W is the notable efficiency-related parameter. Selection focus: lifecycle requirement review motor input.

Product Features

Rated Voltage(V)	12
Size(mm)	606025
Max.Air Flow(m³/h)	38.6
Max.Pressure(Pa)	56.8
Input Power(W)	2.04
Speed(rpm)	4600
Noise(db)	33

Product Features

High Airflow Design

For servers, storage systems and ICT equipment, the SANYO DENKI 109R0612S4D01 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

With up to 38.6 m3/h airflow and 56.8 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Check exhaust separation from the intake zone. It helps maintenance teams plan compatible replacements. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 109R0612S4D01 supports thermal management in server chassis and computing nodes. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation.

Storage Systems

For storage arrays and data appliances, 109R0612S4D01 provides a dedicated forced-air cooling path. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation.

ICT Equipment

SANYO DENKI 109R0612S4D01 serves network and other ICT hardware that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation.

Frequently Asked Questions

What should be checked if 109R0612S4D01 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What bearing type does 109R0612S4D01 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

Does 109R0612S4D01 have a pressure rating?

The worksheet lists 56.8 Pa. Use the official curve to match it to system resistance.

What certifications apply to 109R0612S4D01?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Can 109R0612S4D01 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

Does 109R0612S4D01 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.
