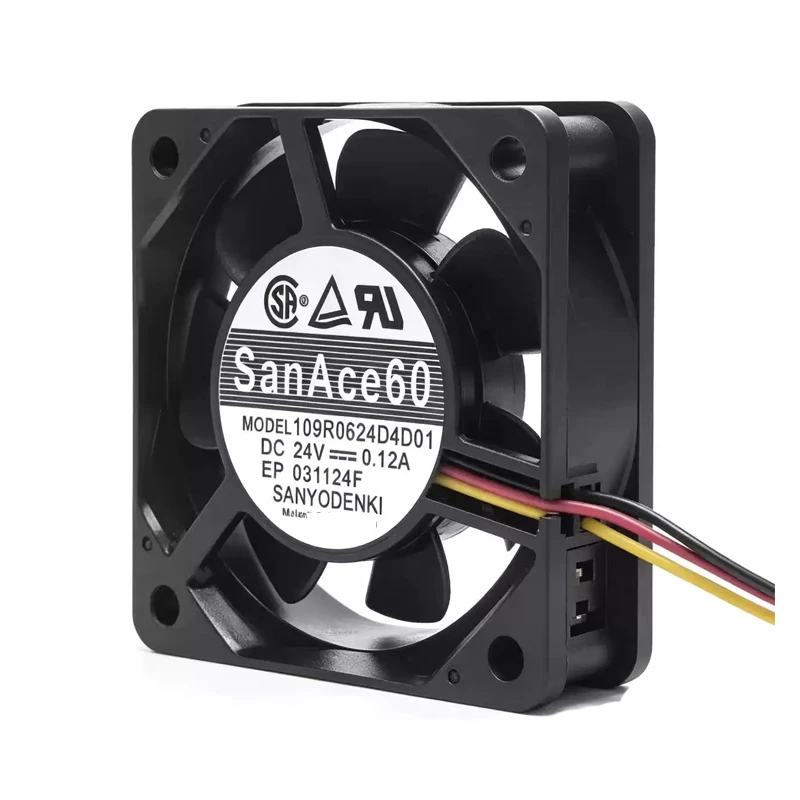

109R0624D4D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0624D4D01 | Sanyo Denki 24VDC 2.88W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki configures 109R0624D4D01 for servers, UPS systems, and telecom equipment as a 24 VDC DC axial fan with 60 × 60 × 25 mm dimensions. The 42.7 m³/h airflow figure supports its stated equipment-cooling role. During cabinet ventilation planning, compare the model's rotational rating. Confirm control inputs against the complete ordering code.

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	42.7
Max.Pressure(Pa)	73.5
Input Power(W)	2.88
Speed(rpm)	5150
Noise(db)	37

Product Features

Reliable Fan Cooling

For servers, storage systems and ICT equipment, the SANYO DENKI 109R0624D4D01 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

A listed maximum airflow of 42.7 m3/h and maximum pressure of 73.5 Pa give engineers a clear basis for matching the fan to enclosure resistance. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Qualify performance with the production guard. The process documents the required installation conditions. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

109R0624D4D01 is suitable for server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

Storage Systems

The San Ace 109R0624D4D01 supports thermal management in storage arrays and data appliances. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It supports reliable OEM equipment cooling.

ICT Equipment

For network and other ICT hardware, 109R0624D4D01 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It supports reliable OEM equipment cooling.

Frequently Asked Questions

Does 109R0624D4D01 have a pressure rating?

The worksheet lists 73.5 Pa. Use the official curve to match it to system resistance.

What certifications apply to 109R0624D4D01?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

What IP protection is documented for 109R0624D4D01?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

What airflow is listed for 109R0624D4D01?

The worksheet lists 42.7 m³/h. Compare the operating point with system resistance and the official performance curve.

Can 109R0624D4D01 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.
