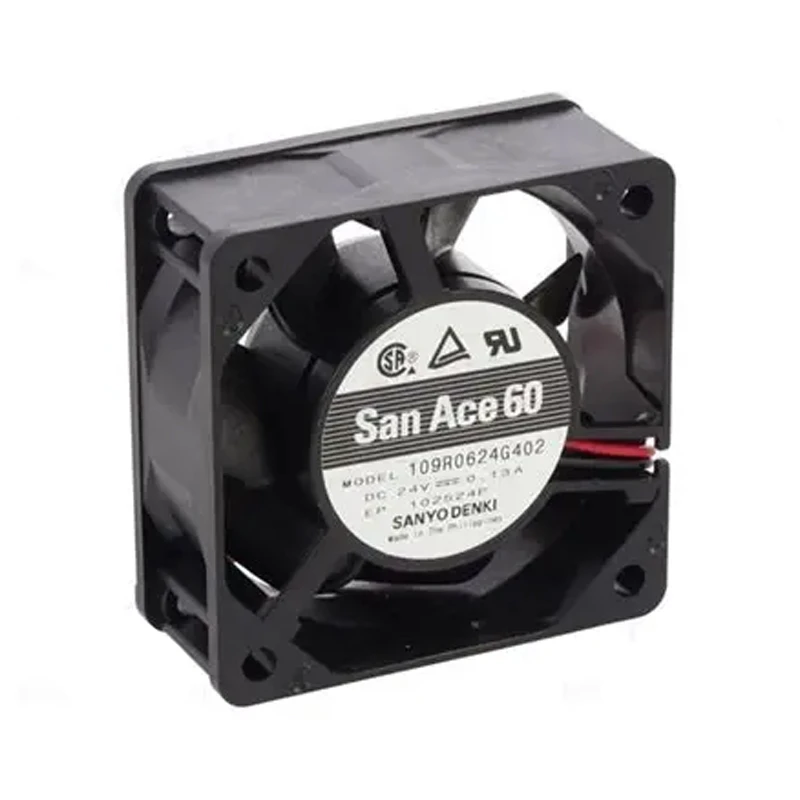

109R0624G402 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0624G402 | Sanyo Denki 24VDC 3.12W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: 109R0624G402 addresses servers, UPS systems, and telecom equipment through a 24 VDC DC axial fan platform measuring 60 × 60 × 25 mm. Series focus: high airflow and pressure. The 46.2 m³/h airflow figure supports its stated equipment-cooling role. Check duty point matching pressure capability. Focus: duty point matching pressure capability.

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	46.2
Max.Pressure(Pa)	87.3
Input Power(W)	3.12
Speed(rpm)	5600
Noise(db)	39

Product Features

Efficient Cooling

The San Ace 109R0624G402 serves servers, storage systems and ICT equipment as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

Its 46.2 m3/h maximum airflow supports rapid air exchange, while 87.3 Pa pressure capability helps overcome resistance within the finished equipment. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Verify the mating connector and lead reach. The check aligns mechanical fit with cooling duty. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

SANYO DENKI 109R0624G402 serves server chassis and computing nodes that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation.

Storage Systems

109R0624G402 is suitable for storage arrays and data appliances. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation. Selection should follow the approved full model code.

ICT Equipment

The San Ace 109R0624G402 supports thermal management in network and other ICT hardware. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation.

Frequently Asked Questions

Why choose 109R0624G402 instead of a standard fan?

Its 24 VDC rating and documented the 46.2 m³/h airflow figure supports its stated equipment-cooling role. provide model-specific selection data without relying on unlisted claims.

What supply voltage does 109R0624G402 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

What speed is listed for 109R0624G402?

The listed speed is 5600 rpm. Confirm control conditions and the actual duty point.

What bearing type does 109R0624G402 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

How should 109R0624G402 be matched to an enclosure?

Check its 60 × 60 × 25 mm size, 46.2 m³/h airflow, 87.3 Pa pressure, mounting points, airflow direction, and system resistance.

What equipment is 109R0624G402 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.
