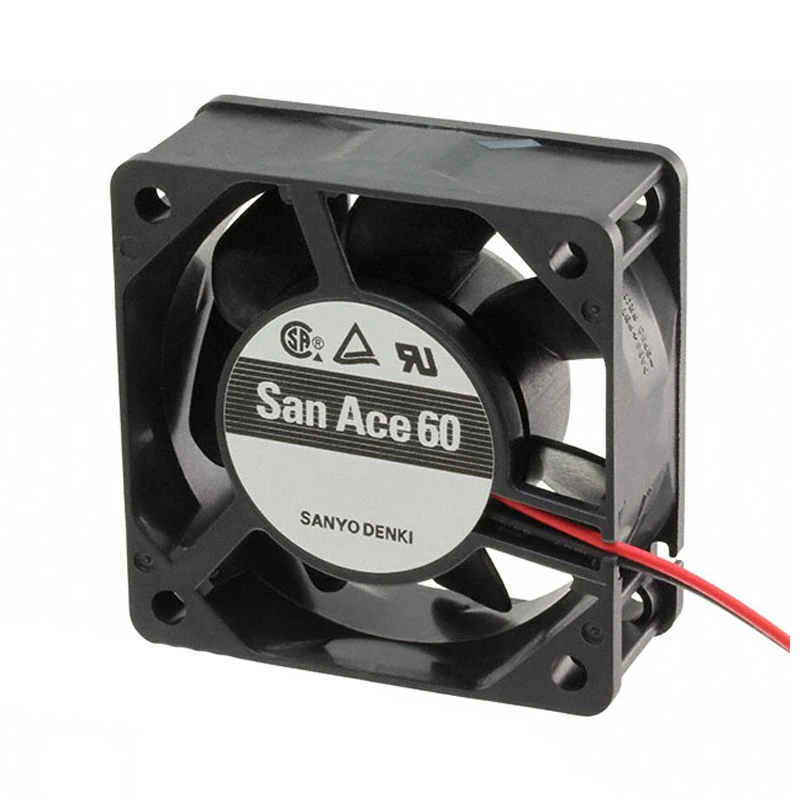

109R0624G4021 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0624G4021 | Sanyo Denki 24VDC 3.12W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: A 60 × 60 × 25 mm frame and 24 VDC rating define 109R0624G4021, a DC axial fan for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. The 46.2 m³/h airflow figure supports its stated equipment-cooling role. Check duty point matching sound level. Focus: duty point matching.

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	46.2
Max.Pressure(Pa)	87.3
Input Power(W)	3.12
Speed(rpm)	5600
Noise(db)	39

Product Features

Efficient Cooling

SANYO DENKI positions 109R0624G4021 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

With up to 46.2 m3/h airflow and 87.3 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Review grille loss at the required duty point. This gives purchasing a controlled replacement reference. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 109R0624G4021 supports thermal management in server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Storage Systems

For storage arrays and data appliances, 109R0624G4021 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

ICT Equipment

SANYO DENKI 109R0624G4021 serves network and other ICT hardware that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

How noisy is 109R0624G4021?

The worksheet lists 39 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

What should be checked if 109R0624G4021 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

Is 109R0624G4021 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

How should 109R0624G4021 be matched to an enclosure?

Check its 60 × 60 × 25 mm size, 46.2 m³/h airflow, 87.3 Pa pressure, mounting points, airflow direction, and system resistance.

What certifications apply to 109R0624G4021?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

What IP protection is documented for 109R0624G4021?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.
