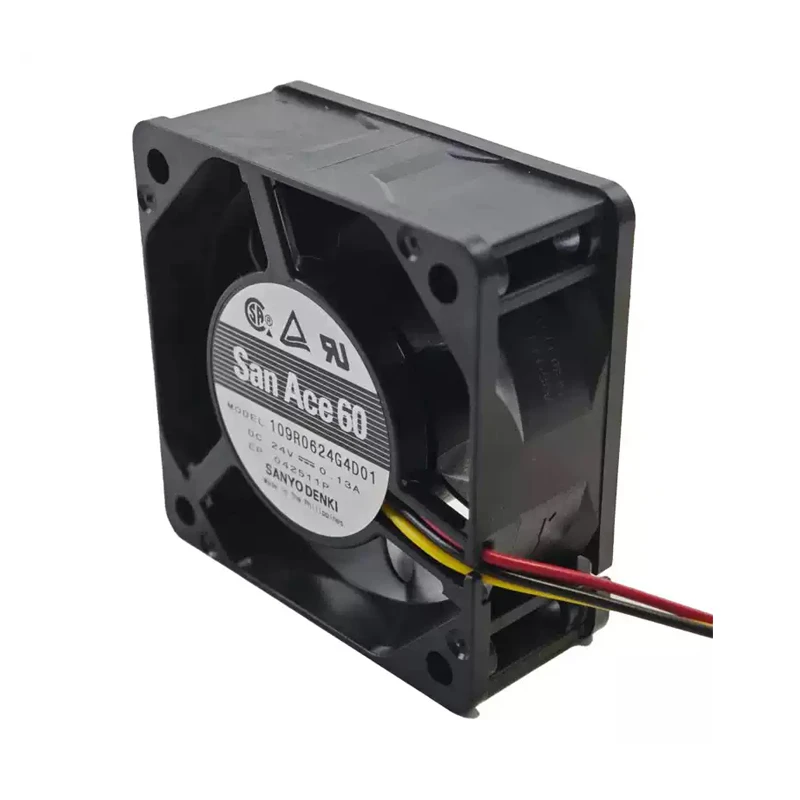

109R0624G4D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0624G4D01 | Sanyo Denki 24VDC 3.12W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki 109R0624G4D01 combines a 60 × 60 × 25 mm DC axial fan platform with a 24 VDC rating for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. The 46.75 m³/h airflow figure supports its stated equipment-cooling role. Focus: service access planning catalog specification.

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	46.75
Input Power(W)	3.12
Speed(rpm)	5600
Noise(db)	39

Product Features

Pressure Cooling

109R0624G4D01 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

The specified maximum airflow of 46.75 m3/h provides a measurable basis for estimating air exchange and selecting the required cooling margin. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Review grille loss at the required duty point. This confirms cooling margin before volume production. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

For server chassis and computing nodes, 109R0624G4D01 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

Storage Systems

SANYO DENKI 109R0624G4D01 serves storage arrays and data appliances that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

ICT Equipment

109R0624G4D01 is suitable for network and other ICT hardware. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service. Selection should follow the approved full model code.

Frequently Asked Questions

What should procurement confirm for 109R0624G4D01?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

Which specifications define 109R0624G4D01?

Use rated voltage, 60 × 60 × 25 mm dimensions, 46.75 m³/h airflow, 5600 rpm, and 3.12 W input for preliminary comparison.

What certifications apply to 109R0624G4D01?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Which application details matter most for 109R0624G4D01?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What airflow is listed for 109R0624G4D01?

The worksheet lists 46.75 m³/h. Compare the operating point with system resistance and the official performance curve.
