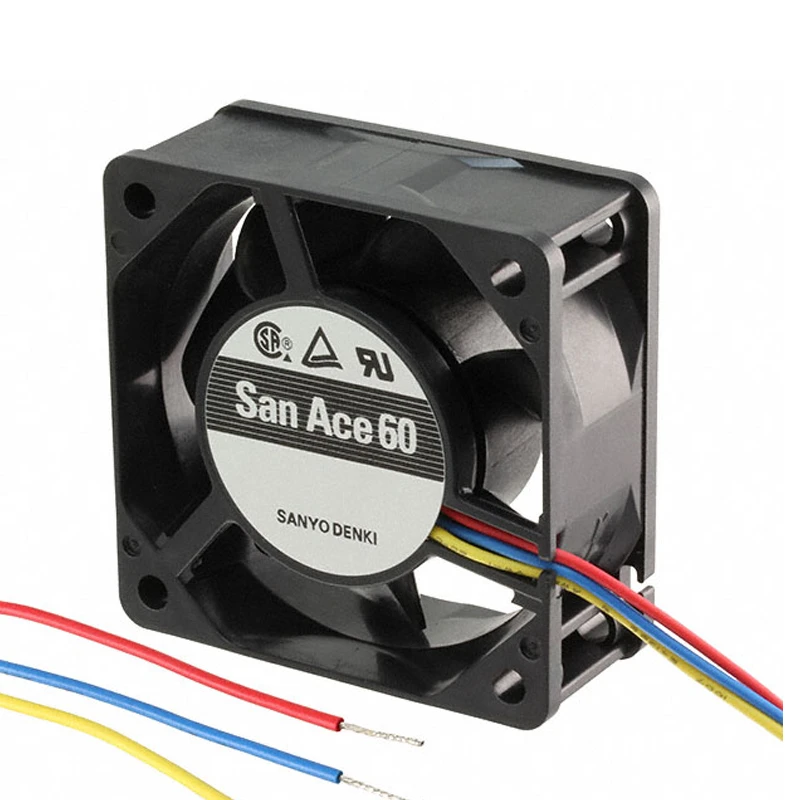

109R0624H401 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0624H401 | Sanyo Denki 24VDC 1.44W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Within servers, UPS systems, and telecom equipment, 109R0624H401 provides a 60 × 60 × 25 mm, 24 VDC DC axial fan configuration. Series focus: high airflow and pressure. A listed input of 1.44 W is the notable efficiency-related parameter. Check selection criteria review electrical load. Focus: selection criteria review electrical load.

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	31.4
Max.Pressure(Pa)	40.2
Input Power(W)	1.44
Speed(rpm)	3800
Noise(db)	28

Product Features

Low Vibration Fan

For servers, storage systems and ICT equipment, the SANYO DENKI 109R0624H401 provides DC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

A listed maximum airflow of 31.4 m3/h and maximum pressure of 40.2 Pa give engineers a clear basis for matching the fan to enclosure resistance. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Verify mounting rigidity under continuous duty. It helps maintenance teams plan compatible replacements. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

109R0624H401 is suitable for server chassis and computing nodes. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

Storage Systems

The San Ace 109R0624H401 supports thermal management in storage arrays and data appliances. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling.

ICT Equipment

For network and other ICT hardware, 109R0624H401 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling.

Frequently Asked Questions

What IP protection is documented for 109R0624H401?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

Does 109R0624H401 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

Why choose 109R0624H401 instead of a standard fan?

Its 24 VDC rating and documented a listed input of 1.44 w is the notable efficiency-related parameter. provide model-specific selection data without relying on unlisted claims.

What supply voltage does 109R0624H401 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

Can 109R0624H401 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.
