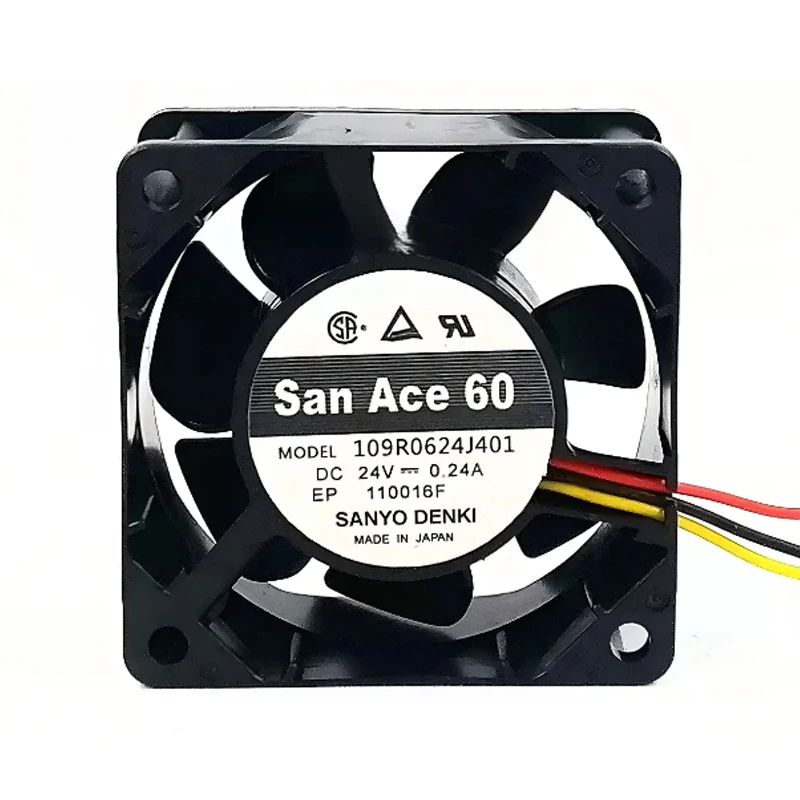

109R0624J401 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0624J401 | Sanyo Denki 24VDC 5.76W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: A 60 × 60 × 25 mm frame and 24 VDC rating define 109R0624J401, a DC axial fan for servers, UPS systems, and telecom equipment. The supplied reference emphasizes high static pressure and high airflow. 7600 rpm is the model's most prominent operating value. Check wiring scheme review mounting size. Selection focus: wiring scheme review mounting size.

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	62.4
Max.Pressure(Pa)	155
Input Power(W)	5.76
Speed(rpm)	7600
Noise(db)	44

Product Features

Stable San Ace Fan

The SANYO DENKI 109R0624J401 is a DC axial fan developed for servers, storage systems and ICT equipment. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

Its 62.4 m3/h maximum airflow supports rapid air exchange, while 155 Pa pressure capability helps overcome resistance within the finished equipment. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Allow service access for fan replacement. This gives purchasing a controlled replacement reference. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

SANYO DENKI 109R0624J401 serves server chassis and computing nodes that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. The application supports stable equipment service.

Storage Systems

109R0624J401 is suitable for storage arrays and data appliances. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service. Selection should follow the approved full model code.

ICT Equipment

The San Ace 109R0624J401 supports thermal management in network and other ICT hardware. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

Frequently Asked Questions

Which specifications define 109R0624J401?

Use rated voltage, 60 × 60 × 25 mm dimensions, 62.4 m³/h airflow, 7600 rpm, and 5.76 W input for preliminary comparison.

What certifications apply to 109R0624J401?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

What IP protection is documented for 109R0624J401?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

Does 109R0624J401 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.

What is the lead time for 109R0624J401?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What input power is listed for 109R0624J401?

The worksheet lists 5.76 W. Check supply capacity and operating conditions before commissioning.
