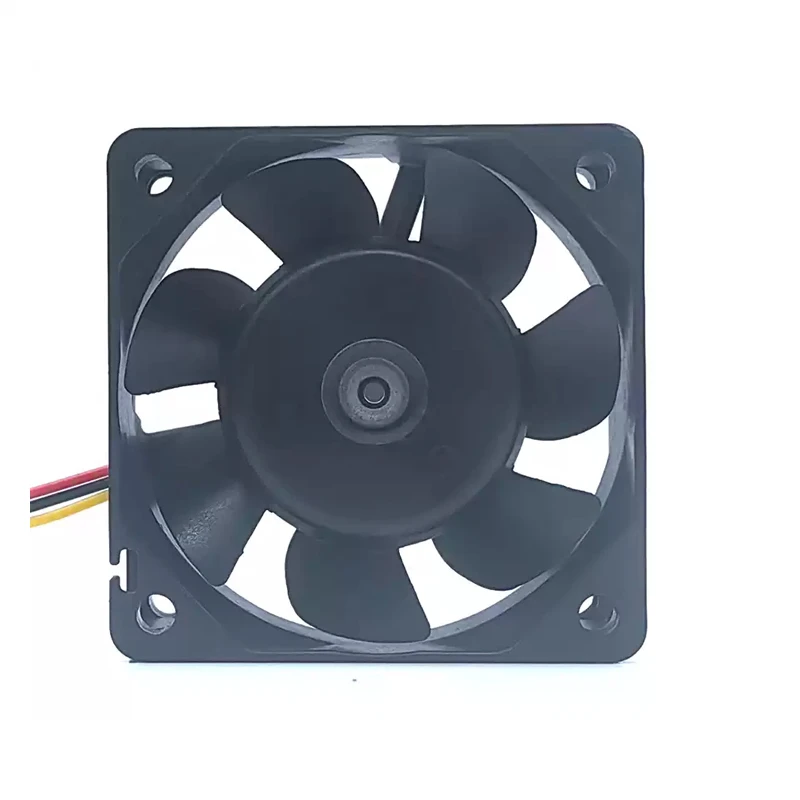

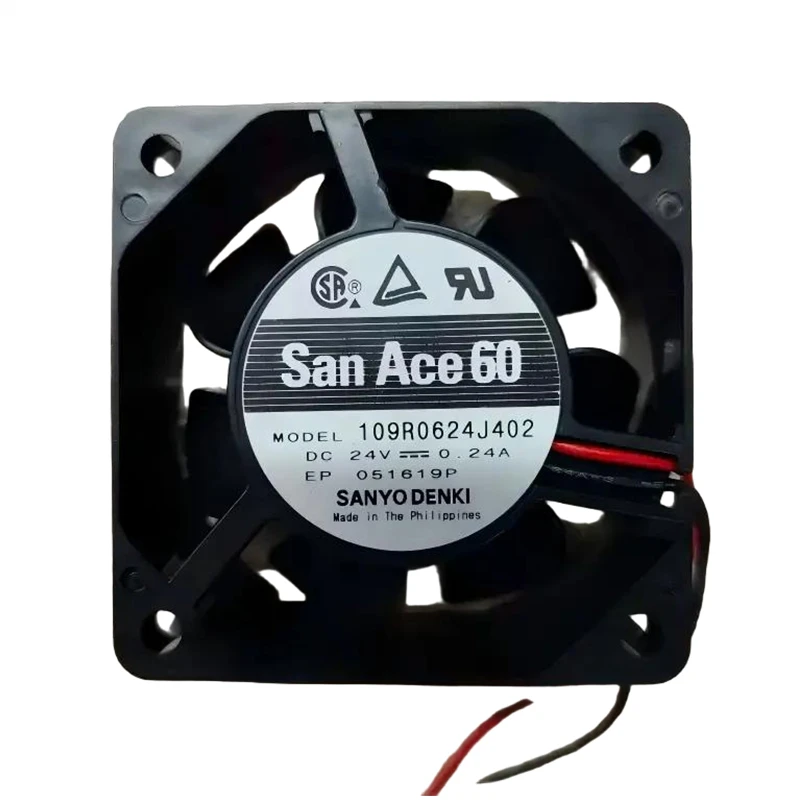

109R0624J402 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0624J402 | Sanyo Denki 24VDC 5.76W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Equipment designers serving servers, UPS systems, and telecom equipment can evaluate Sanyo Denki 109R0624J402, a DC axial fan rated at 24 VDC and sized 60 × 60 × 25 mm. 7600 rpm is the model's most prominent operating value. Base mounting verification on the stated pressure capability. Use current model documentation to validate protection choices.

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	63
Max.Pressure(Pa)	155
Input Power(W)	5.76
Speed(rpm)	7600
Noise(db)	44

Product Features

High Airflow Design

109R0624J402 brings San Ace DC axial fan cooling to servers, storage systems and ICT equipment. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

With up to 63 m3/h airflow and 155 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Check startup demand against the power supply. This gives purchasing a controlled replacement reference. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

The San Ace 109R0624J402 supports thermal management in server chassis and computing nodes. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation.

Storage Systems

For storage arrays and data appliances, 109R0624J402 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation.

ICT Equipment

SANYO DENKI 109R0624J402 serves network and other ICT hardware that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. This helps maintain dependable equipment operation.

Frequently Asked Questions

What should procurement confirm for 109R0624J402?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

Does 109R0624J402 have a pressure rating?

The worksheet lists 155 Pa. Use the official curve to match it to system resistance.

What certifications apply to 109R0624J402?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Which application details matter most for 109R0624J402?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What airflow is listed for 109R0624J402?

The worksheet lists 63 m³/h. Compare the operating point with system resistance and the official performance curve.

Can 109R0624J402 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.
