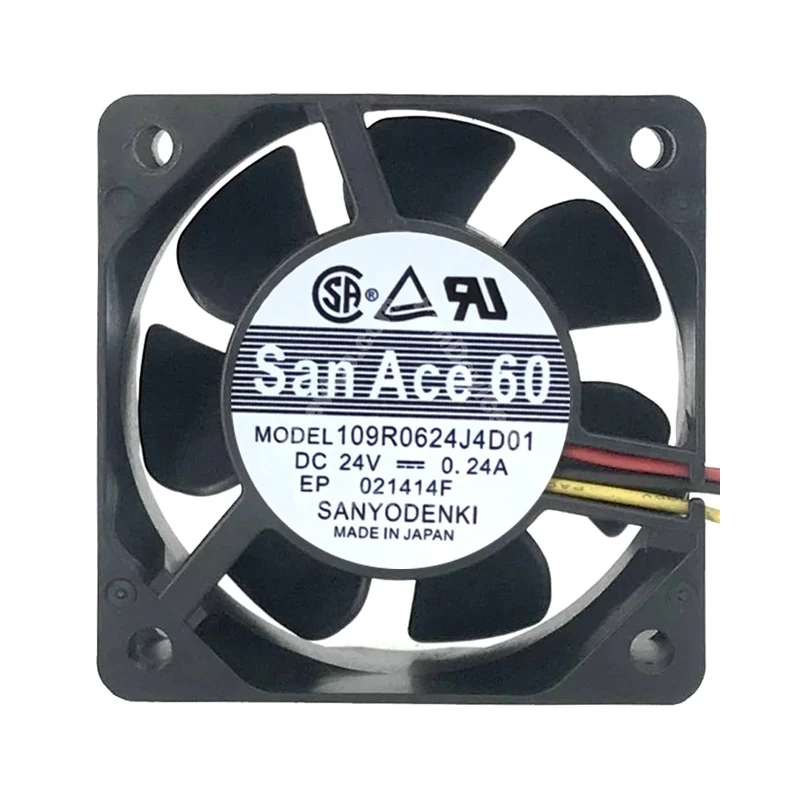

109R0624J4D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0624J4D01 | Sanyo Denki 24VDC 5.76W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 109R0624J4D01 is a Sanyo Denki 24 VDC, 60 × 60 × 25 mm DC axial fan for servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. Base spares assessment on the stated static-pressure entry. Check the full suffix before confirming connector details. Focus: power budget review performance curve.

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	63.07
Max.Pressure(Pa)	155
Input Power(W)	5.76
Speed(rpm)	7600
Noise(db)	44

Product Features

Stable San Ace Fan

The San Ace 109R0624J4D01 serves servers, storage systems and ICT equipment as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

Its 63.07 m3/h maximum airflow supports rapid air exchange, while 155 Pa pressure capability helps overcome resistance within the finished equipment. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Measure installed sound in the final cabinet. It helps maintenance teams plan compatible replacements. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

SANYO DENKI 109R0624J4D01 serves server chassis and computing nodes that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

Storage Systems

109R0624J4D01 is suitable for storage arrays and data appliances. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration. Selection should follow the approved full model code.

ICT Equipment

The San Ace 109R0624J4D01 supports thermal management in network and other ICT hardware. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

What speed is listed for 109R0624J4D01?

The listed speed is 7600 rpm. Confirm control conditions and the actual duty point.

What should procurement confirm for 109R0624J4D01?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

Which specifications define 109R0624J4D01?

Use rated voltage, 60 × 60 × 25 mm dimensions, 63.07 m³/h airflow, 7600 rpm, and 5.76 W input for preliminary comparison.

What equipment is 109R0624J4D01 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Which application details matter most for 109R0624J4D01?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What maintenance does 109R0624J4D01 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.
