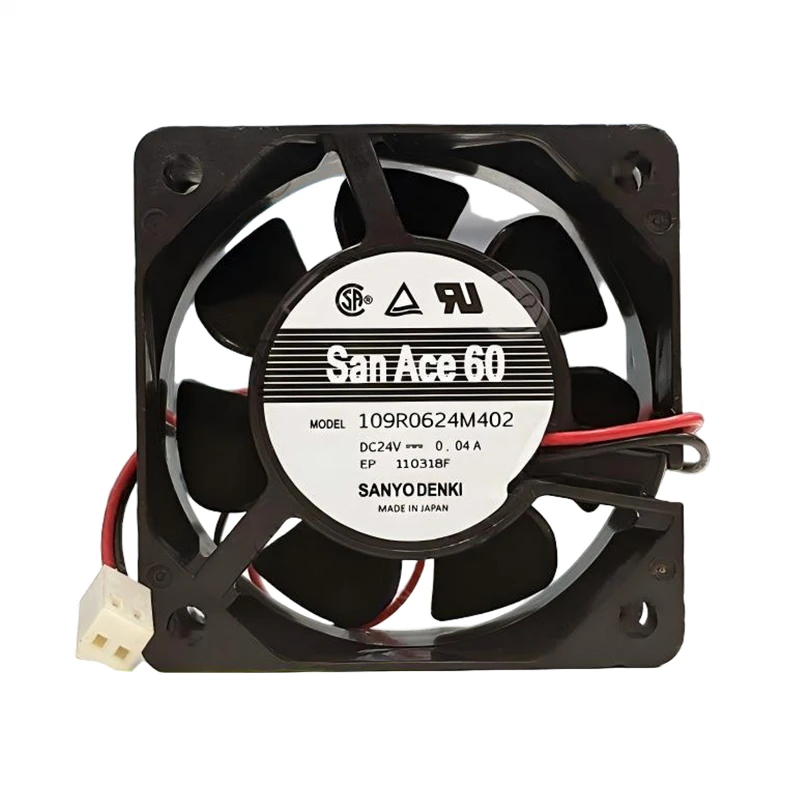

109R0624M402 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0624M402 | Sanyo Denki 24VDC DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 60 × 60 × 25 mm Sanyo Denki 109R0624M402 brings 24 VDC DC axial fan cooling to servers, UPS systems, and telecom equipment. Series focus: high airflow and pressure. Base fan selection on the stated motor input. Validate mounting and wiring from the model drawing. Focus: procurement data comparison ventilation capacity.

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	21.4
Max.Pressure(Pa)	19.6
Speed(rpm)	2600
Noise(db)	20

Product Features

High Airflow Design

The San Ace 109R0624M402 serves servers, storage systems and ICT equipment as a DC axial fan. Its airflow supports heat transfer from internal devices toward cabinet or chassis exhaust openings.

Its 21.4 m3/h maximum airflow supports rapid air exchange, while 19.6 Pa pressure capability helps overcome resistance within the finished equipment. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Allow service access for fan replacement. The process documents the required installation conditions. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

SANYO DENKI 109R0624M402 serves server chassis and computing nodes that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. The application supports stable equipment service.

Storage Systems

109R0624M402 is suitable for storage arrays and data appliances. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service. Selection should follow the approved full model code.

ICT Equipment

The San Ace 109R0624M402 supports thermal management in network and other ICT hardware. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

Frequently Asked Questions

Which application details matter most for 109R0624M402?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What airflow is listed for 109R0624M402?

The worksheet lists 21.4 m³/h. Compare the operating point with system resistance and the official performance curve.

What is the lead time for 109R0624M402?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What supply voltage does 109R0624M402 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

What speed is listed for 109R0624M402?

The listed speed is 2600 rpm. Confirm control conditions and the actual duty point.

What should procurement confirm for 109R0624M402?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.
