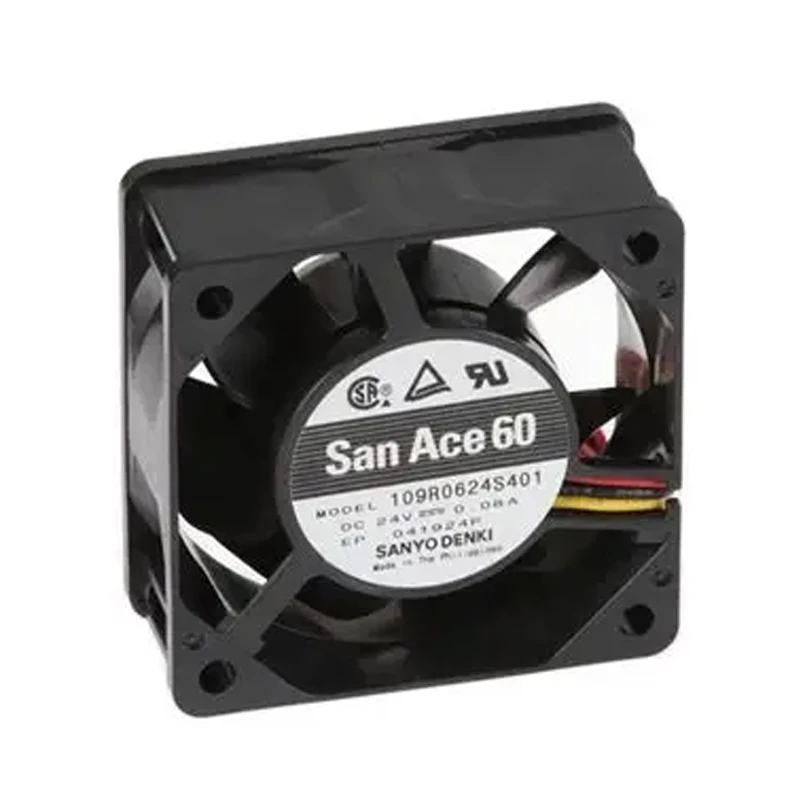

109R0624S401 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0624S401 | Sanyo Denki 24VDC 1.92W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 60 × 60 × 25 mm Sanyo Denki 109R0624S401 brings 24 VDC DC axial fan cooling to servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. Treat the static-pressure entry as a primary input to mounting verification. Obtain the applicable curve before final duty-point approval.

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	39.1
Input Power(W)	1.92
Speed(rpm)	4600
Noise(db)	33

Product Features

Low Vibration Fan

SANYO DENKI positions 109R0624S401 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

The specified maximum airflow of 39.1 m3/h provides a measurable basis for estimating air exchange and selecting the required cooling margin. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Measure installed sound in the final cabinet. The outcome supports dependable long-term equipment service. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

109R0624S401 is suitable for server chassis and computing nodes. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

Storage Systems

The San Ace 109R0624S401 supports thermal management in storage arrays and data appliances. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

ICT Equipment

For network and other ICT hardware, 109R0624S401 provides a dedicated forced-air cooling path. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It supports reliable OEM equipment cooling.

Frequently Asked Questions

What should procurement confirm for 109R0624S401?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

How should 109R0624S401 be matched to an enclosure?

Check its 60 × 60 × 25 mm size, 39.1 m³/h airflow, mounting points, airflow direction, and system resistance.

What certifications apply to 109R0624S401?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Which application details matter most for 109R0624S401?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

What maintenance does 109R0624S401 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.
