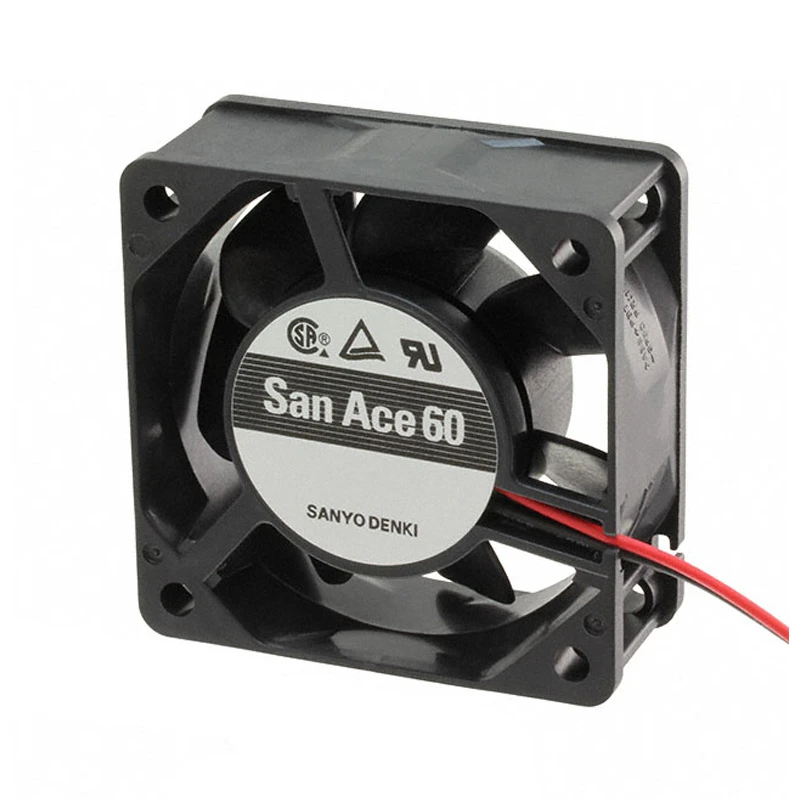

109R0624S4021 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0624S4021 | Sanyo Denki 24VDC 1.92W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki 109R0624S4021 combines a 60 × 60 × 25 mm DC axial fan platform with a 24 VDC rating for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. A listed input of 1.92 W is the notable efficiency-related parameter. Selection focus: cooling margin validation cooling output.

Product Features

Rated Voltage(V)	24
Size(mm)	606025
Max.Air Flow(m³/h)	38.6
Max.Pressure(Pa)	56.8
Input Power(W)	1.92
Speed(rpm)	4600
Noise(db)	33

Product Features

Low Vibration Fan

SANYO DENKI positions 109R0624S4021 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

A listed maximum airflow of 38.6 m3/h and maximum pressure of 56.8 Pa give engineers a clear basis for matching the fan to enclosure resistance. The fan converts electrical input into focused air movement for efficient cooling. Its mechanical layout supports repeatable installation and dependable operation in OEM equipment. For design approval, verify airflow direction, connector details and available control signals. Prototype testing should include the final vents, guards and component loading.

Verify mounting rigidity under continuous duty. The check aligns mechanical fit with cooling duty.

Application Industry

Server Cooling

109R0624S4021 is suitable for server chassis and computing nodes. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. The application supports stable equipment service. Selection should follow the approved full model code.

Storage Systems

The San Ace 109R0624S4021 supports thermal management in storage arrays and data appliances. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. The application supports stable equipment service.

ICT Equipment

For network and other ICT hardware, 109R0624S4021 provides a dedicated forced-air cooling path. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. The application supports stable equipment service.

Frequently Asked Questions

Is 109R0624S4021 suitable for high-reliability cooling?

Evaluate the exact bearing, life, temperature, alarm, and protection data. Correct sizing and clean airflow are also required for reliable operation.

What IP protection is documented for 109R0624S4021?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

What airflow is listed for 109R0624S4021?

The worksheet lists 38.6 m³/h. Compare the operating point with system resistance and the official performance curve.

Can 109R0624S4021 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

How noisy is 109R0624S4021?

The worksheet lists 33 dB. Enclosure acoustics, system resistance, and distance can change the installed result.
