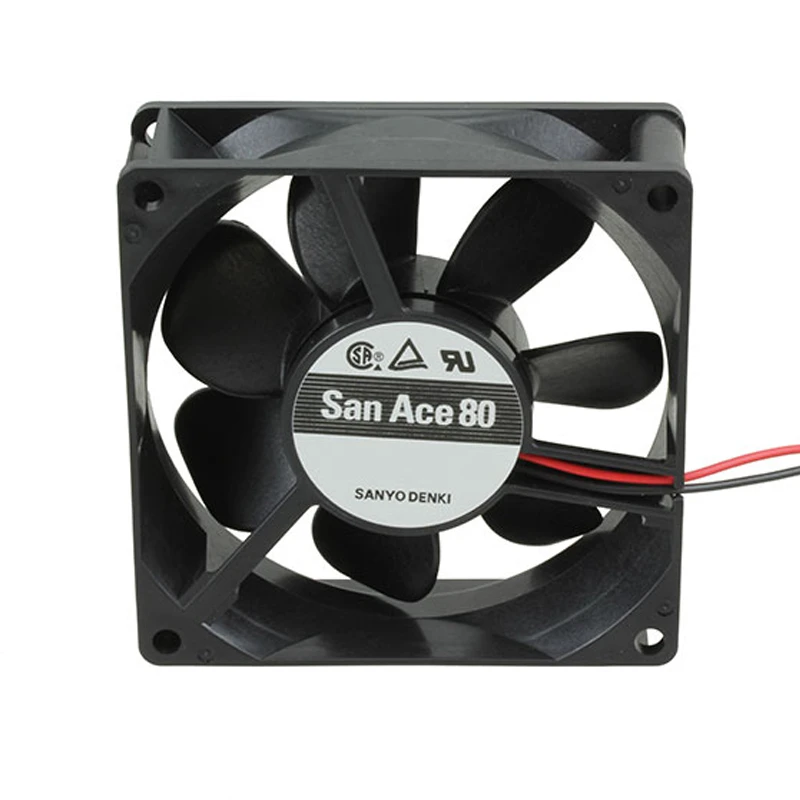

109R0812G402 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0812G402 | Sanyo Denki 12VDC 4.44W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki 109R0812G402 combines a 80 × 80 × 25 mm DC axial fan platform with a 12 VDC rating for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. 80.4 Pa maximum pressure is the most distinctive duty-point parameter. Selection focus: selection criteria review motor input.

Product Features

Rated Voltage(V)	12
Size(mm)	808025
Max.Air Flow(m³/h)	88.8
Max.Pressure(Pa)	80.4
Input Power(W)	4.44
Speed(rpm)	4500
Noise(db)	40

Product Features

Reliable Fan Cooling

SANYO DENKI positions 109R0812G402 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

A listed maximum airflow of 88.8 m3/h and maximum pressure of 80.4 Pa give engineers a clear basis for matching the fan to enclosure resistance. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Verify mounting rigidity under continuous duty. The check aligns mechanical fit with cooling duty. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

109R0812G402 is suitable for server chassis and computing nodes. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Storage Systems

The San Ace 109R0812G402 supports thermal management in storage arrays and data appliances. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

ICT Equipment

For network and other ICT hardware, 109R0812G402 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

What input power is listed for 109R0812G402?

The worksheet lists 4.44 W. Check supply capacity and operating conditions before commissioning.

What should be checked if 109R0812G402 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What should procurement confirm for 109R0812G402?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

How should 109R0812G402 be matched to an enclosure?

Check its 80 × 80 × 25 mm size, 88.8 m³/h airflow, 80.4 Pa pressure, mounting points, airflow direction, and system resistance.

What certifications apply to 109R0812G402?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.
