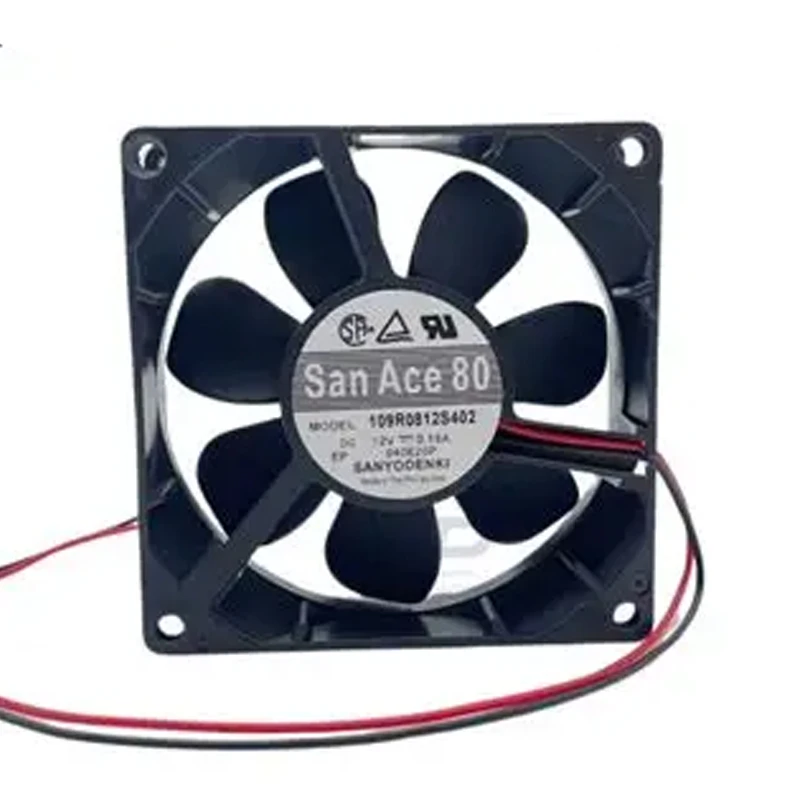

109R0812S402 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0812S402 | Sanyo Denki 12VDC 2.16W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: The 80 × 80 × 25 mm Sanyo Denki 109R0812S402 brings 12 VDC DC axial fan cooling to servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. Base maintenance preparation on the stated installation footprint. Confirm control inputs against the complete ordering code.

Product Features

Rated Voltage(V)	12
Size(mm)	808025
Max.Air Flow(m³/h)	71.4
Max.Pressure(Pa)	48.1
Input Power(W)	2.16
Speed(rpm)	3400
Noise(db)	34

Product Features

Reliable Fan Cooling

SANYO DENKI positions 109R0812S402 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

The rated peak airflow of 71.4 m3/h combines with 48.1 Pa pressure capability to support useful flow after installation losses are considered. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Check exhaust separation from the intake zone. The outcome supports dependable long-term equipment service. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

For server chassis and computing nodes, 109R0812S402 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

Storage Systems

SANYO DENKI 109R0812S402 serves storage arrays and data appliances that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

ICT Equipment

109R0812S402 is suitable for network and other ICT hardware. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. The application supports stable equipment service. Selection should follow the approved full model code.

Frequently Asked Questions

How should 109R0812S402 be matched to an enclosure?

Check its 80 × 80 × 25 mm size, 71.4 m³/h airflow, 48.1 Pa pressure, mounting points, airflow direction, and system resistance.

What equipment is 109R0812S402 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

What IP protection is documented for 109R0812S402?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

What maintenance does 109R0812S402 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Can 109R0812S402 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.
