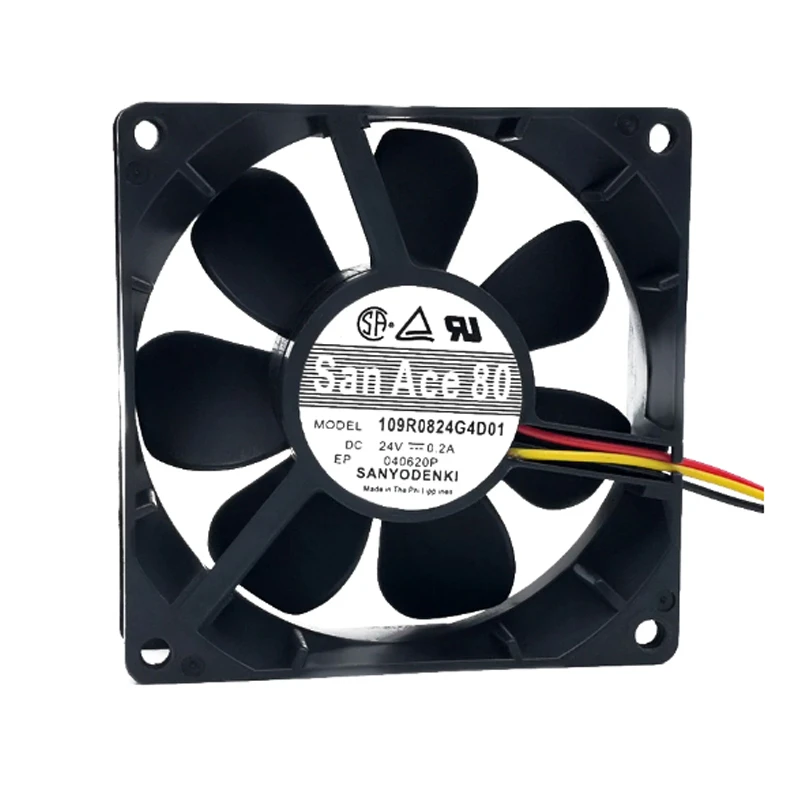

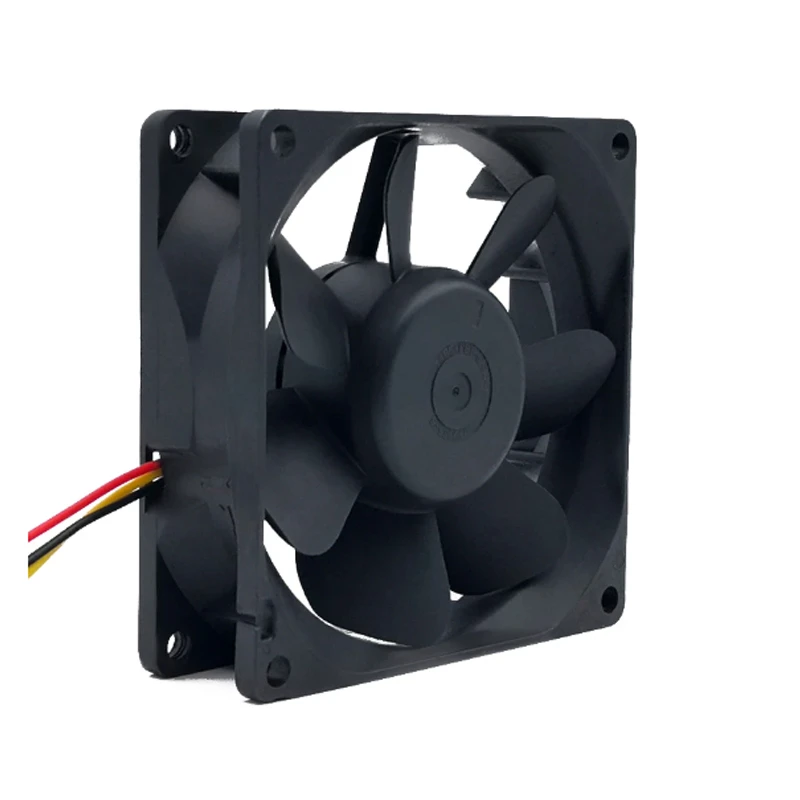

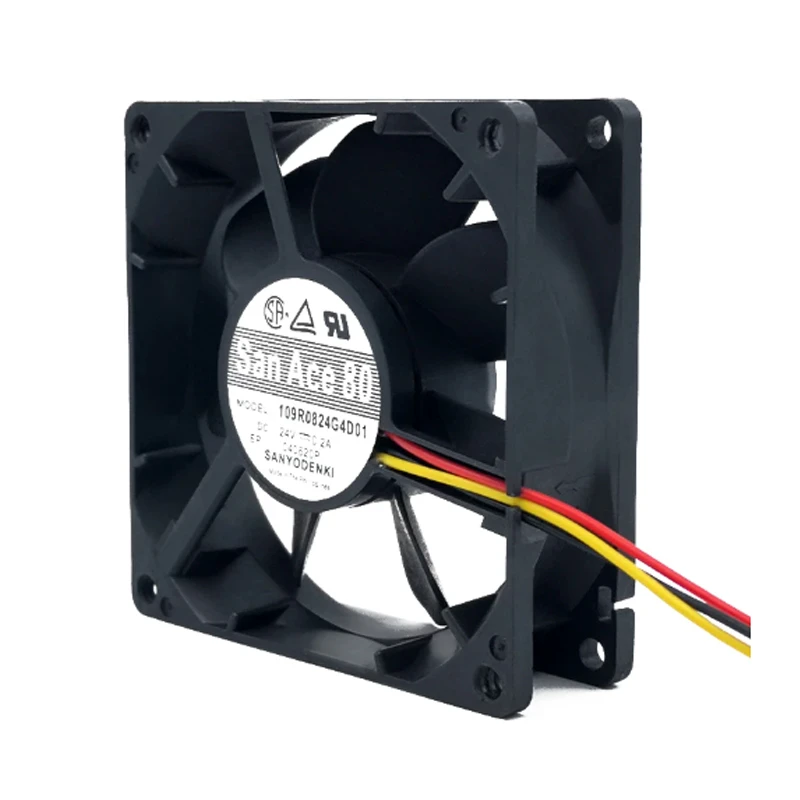

109R0824G4D01 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0824G4D01 | Sanyo Denki 24VDC 4.8W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki 109R0824G4D01 combines a 80 × 80 × 25 mm DC axial fan platform with a 24 VDC rating for servers, UPS systems, and telecom equipment. High airflow is highlighted together with a high-static-pressure design. 80.4 Pa maximum pressure is the most distinctive duty-point parameter. Focus: control interface planning installation footprint.

Product Features

Rated Voltage(V)	24
Size(mm)	808025
Max.Air Flow(m³/h)	90.1
Max.Pressure(Pa)	80.4
Input Power(W)	4.8
Speed(rpm)	4500
Noise(db)	40

Product Features

Pressure Cooling

SANYO DENKI positions 109R0824G4D01 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

A listed maximum airflow of 90.1 m3/h and maximum pressure of 80.4 Pa give engineers a clear basis for matching the fan to enclosure resistance. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Preserve outlet space to limit recirculation. This provides buyers with a traceable selection basis. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

109R0824G4D01 is suitable for server chassis and computing nodes. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration. Selection should follow the approved full model code.

Storage Systems

The San Ace 109R0824G4D01 supports thermal management in storage arrays and data appliances. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

ICT Equipment

For network and other ICT hardware, 109R0824G4D01 provides a dedicated forced-air cooling path. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

What equipment is 109R0824G4D01 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Can 109R0824G4D01 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

What airflow is listed for 109R0824G4D01?

The worksheet lists 90.1 m³/h. Compare the operating point with system resistance and the official performance curve.

Can 109R0824G4D01 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What supply voltage does 109R0824G4D01 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.
