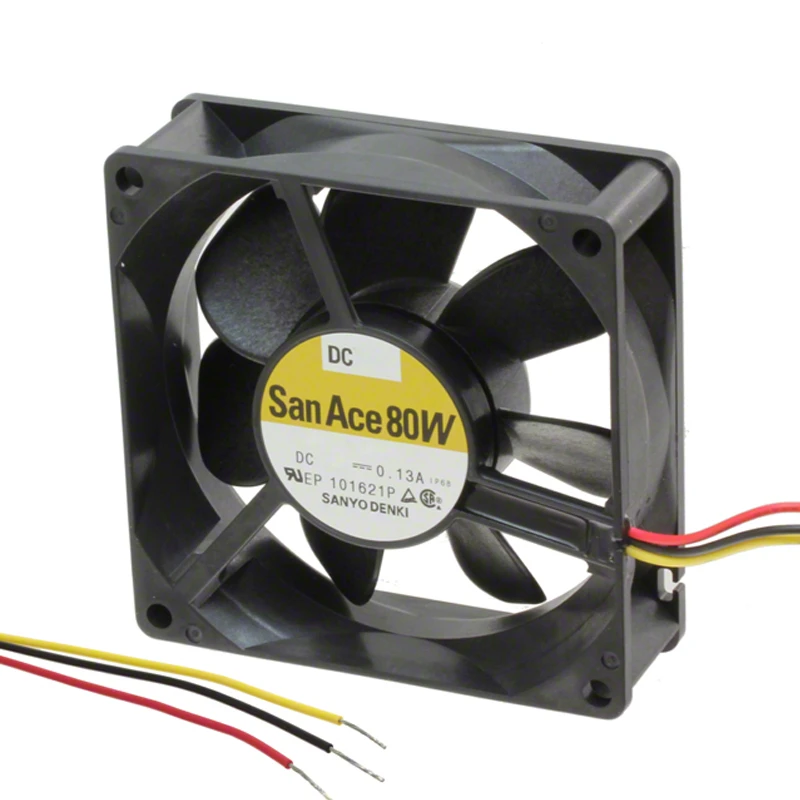

109R0824L4011 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0824L4011 | Sanyo Denki 24VDC DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: 109R0824L4011 serves servers, UPS systems, and telecom equipment as a 80 × 80 × 25 mm DC axial fan rated at 24 VDC. High airflow is highlighted together with a high-static-pressure design. 14.7 Pa maximum pressure is the most distinctive duty-point parameter. Check cabinet ventilation planning mounting size. Focus: cabinet ventilation planning.

Product Features

Rated Voltage(V)	24
Size(mm)	808025
Max.Air Flow(m³/h)	38.6
Max.Pressure(Pa)	14.7
Speed(rpm)	1850
Noise(db)	20

Product Features

High Airflow Design

109R0824L4011 is intended for dependable forced-air cooling in servers, storage systems and ICT equipment. This SANYO DENKI DC axial fan fits equipment designs where thermal stability affects service continuity.

Its 38.6 m3/h maximum airflow supports rapid air exchange, while 14.7 Pa pressure capability helps overcome resistance within the finished equipment. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Confirm the operating environment for the suffix. This keeps sourcing decisions tied to validated system needs. Confirm the final fan curve in the assembled equipment.

Application Industry

Server Cooling

SANYO DENKI 109R0824L4011 serves server chassis and computing nodes that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. This helps maintain dependable equipment operation.

Storage Systems

109R0824L4011 is suitable for storage arrays and data appliances. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

ICT Equipment

The San Ace 109R0824L4011 supports thermal management in network and other ICT hardware. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

What equipment is 109R0824L4011 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Can 109R0824L4011 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

What maintenance does 109R0824L4011 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.

Can 109R0824L4011 reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What supply voltage does 109R0824L4011 require?

The worksheet lists 24 VDC. Check polarity or AC frequency and the wiring diagram before commissioning.

Can 109R0824L4011 run continuously in a 24/7 system?

Verify the exact bearing, rated life, temperature range, and duty limits. The supplied family description alone does not confirm continuous operation for every suffix.
