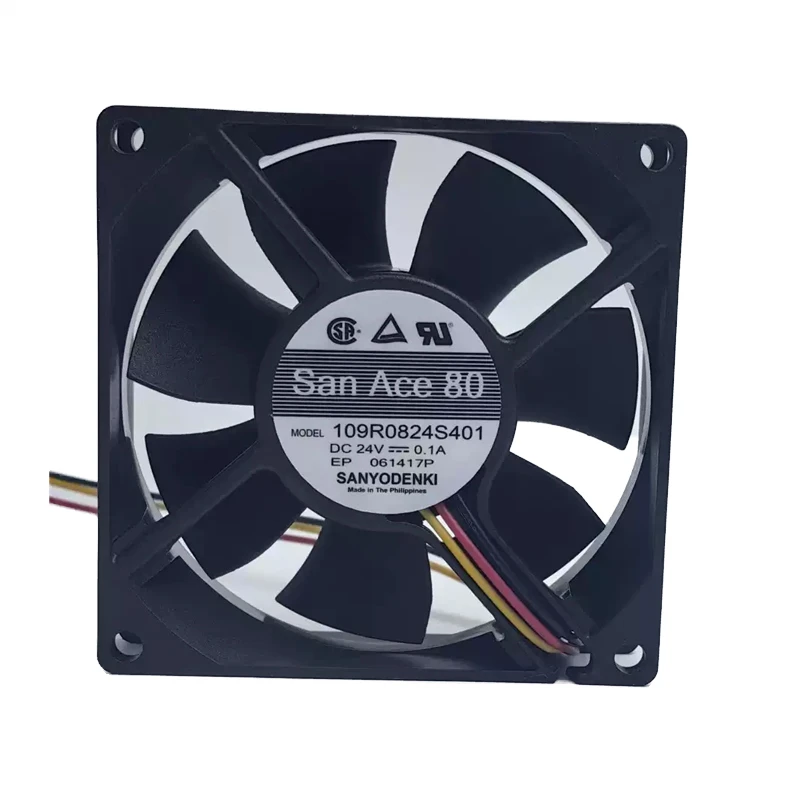

109R0824S401 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109R0824S401 | Sanyo Denki 24VDC 2.4W DC Axial Fan for UPS, server and telecom equipment cooling

Type:: Axial Fans

Industry:: Data Center Cooling

Description:: Sanyo Denki configures 109R0824S401 for servers, UPS systems, and telecom equipment as a 24 VDC DC axial fan with 80 × 80 × 25 mm dimensions. 48 Pa maximum pressure is the most distinctive duty-point parameter. Base service-life planning on the stated supply requirement. Use current model documentation to validate protection choices.

Product Features

Rated Voltage(V)	24
Size(mm)	808025
Max.Air Flow(m³/h)	72
Max.Pressure(Pa)	48
Input Power(W)	2.4
Speed(rpm)	3400
Noise(db)	34

Product Features

Stable San Ace Fan

SANYO DENKI positions 109R0824S401 as a DC axial fan for servers, storage systems and ICT equipment. It helps equipment designers manage local hot spots where natural convection is insufficient.

With up to 72 m3/h airflow and 48 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Include filter loading in the airflow margin. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Server Cooling

The San Ace 109R0824S401 supports thermal management in server chassis and computing nodes. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. The application supports stable equipment service.

Storage Systems

For storage arrays and data appliances, 109R0824S401 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. The application supports stable equipment service.

ICT Equipment

SANYO DENKI 109R0824S401 serves network and other ICT hardware that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. The application supports stable equipment service.

Frequently Asked Questions

How noisy is 109R0824S401?

The worksheet lists 34 dB. Enclosure acoustics, system resistance, and distance can change the installed result.

What should be checked if 109R0824S401 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What bearing type does 109R0824S401 use?

The exact bearing is not stated in the supplied row. Confirm it from the complete model suffix and current Sanyo Denki datasheet.

How should 109R0824S401 be matched to an enclosure?

Check its 80 × 80 × 25 mm size, 72 m³/h airflow, 48 Pa pressure, mounting points, airflow direction, and system resistance.

What equipment is 109R0824S401 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

Can 109R0824S401 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.
