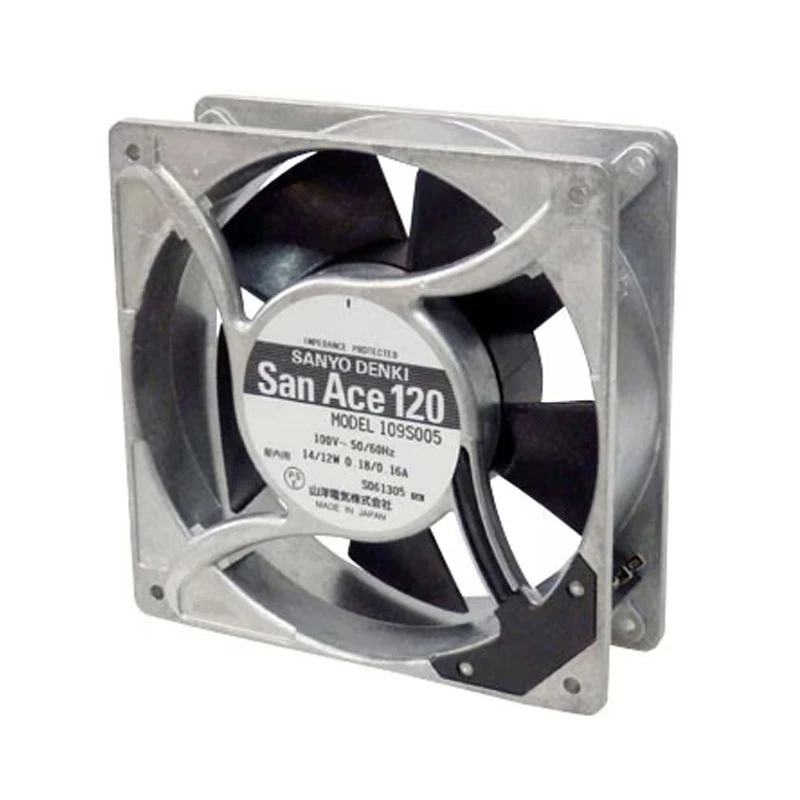

109S005 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109S005 | Sanyo Denki 100VAC 14/12W AC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: Within servers, UPS systems, and telecom equipment, Sanyo Denki 109S005 operates as a 120 × 120 × 38 mm AC axial fan at 100 VAC. The series cooling function is confirmed; suffix-specific options require datasheet verification. Its 2700/3100 rpm rating defines a lower-speed operating point. Focus: resistance curve checking performance curve.

Datasheet:: 109S005 | Sanyo Denki 100VAC 14/12W AC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	100
Size(mm)	12012038
Max.Air Flow(m³/h)	141/162
Max.Pressure(Pa)	55.9/65.7
Input Power(W)	14/12
Speed(rpm)	2700/3100
Noise(db)	40/43

Product Features

Low Vibration Fan

109S005 is intended for dependable forced-air cooling in automation controls, PLC cabinets and drive systems. This SANYO DENKI AC axial fan fits equipment designs where thermal stability affects service continuity.

The rated peak airflow of 141/162 m3/h combines with 55.9/65.7 Pa pressure capability to support useful flow after installation losses are considered. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Measure installed sound in the final cabinet. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment.

Application Industry

Control Cabinets

For automation and electrical control cabinets, 109S005 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling.

PLC Systems

SANYO DENKI 109S005 serves PLC and motion-control equipment that operate with sustained internal heat. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. It supports reliable OEM equipment cooling.

Variable Speed Drives

109S005 is suitable for inverters and industrial drive systems. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

Frequently Asked Questions

What should procurement confirm for 109S005?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

Which specifications define 109S005?

Use rated voltage, 120 × 120 × 38 mm dimensions, 141/162 m³/h airflow, 2700/3100 rpm, and 14/12 W input for preliminary comparison.

What certifications apply to 109S005?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Which application details matter most for 109S005?

Review ambient temperature, airflow restriction, contamination exposure, noise limit, mounting orientation, and maintenance access.

Does 109S005 support PWM speed control?

PWM or sensor functions depend on the exact suffix. Confirm the control lead and interface in the applicable Sanyo Denki datasheet.
