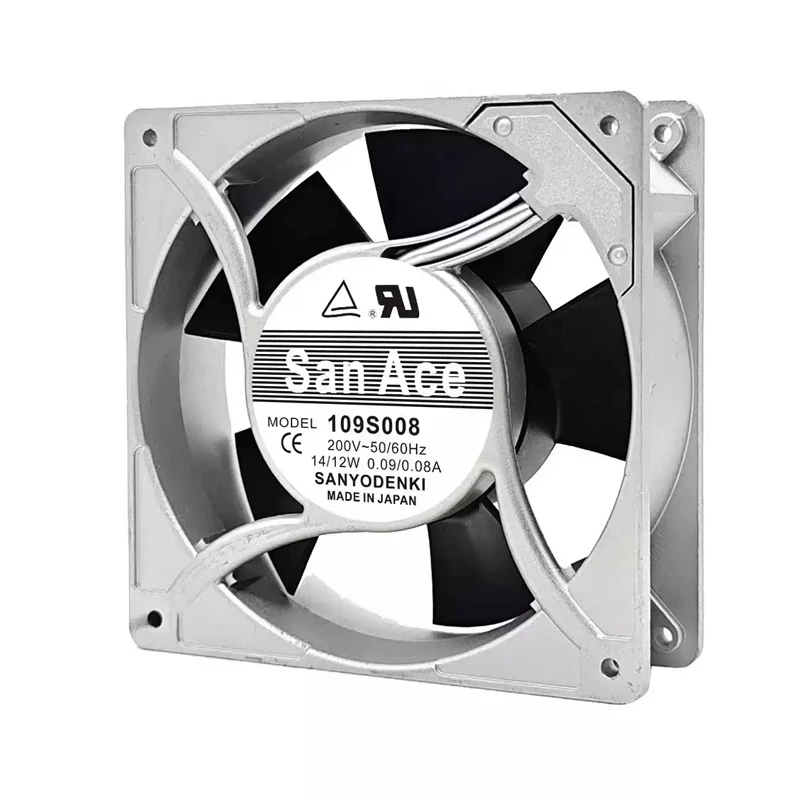

109S008 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109S008 | Sanyo Denki 200VAC 14/12W AC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: Within servers, UPS systems, and telecom equipment, Sanyo Denki 109S008 operates as a 120 × 120 × 38 mm AC axial fan at 200 VAC. The series cooling function is confirmed; suffix-specific options require datasheet verification. Its 2700/3100 rpm rating defines a lower-speed operating point. Focus: replacement fit screening dimensional envelope.

Datasheet:: 109S008 | Sanyo Denki 200VAC 14/12W AC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	200
Size(mm)	12012038
Max.Air Flow(m³/h)	141/162
Max.Pressure(Pa)	55.9/65.7
Input Power(W)	14/12
Speed(rpm)	2700/3100
Noise(db)	40/43

Product Features

Efficient Cooling

For automation controls, PLC cabinets and drive systems, the SANYO DENKI 109S008 provides AC axial fan cooling in an integration-ready format. It establishes an active air path through restricted equipment spaces.

With up to 141/162 m3/h airflow and 55.9/65.7 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. OEM qualification should check startup demand, installation orientation and the exact electrical interface. Installed sound and airflow depend on the surrounding cabinet structure.

Allow service access for fan replacement. It supports stable operation across the intended load cycle. Confirm the final fan curve in the assembled equipment.

Application Industry

Control Cabinets

The San Ace 109S008 supports thermal management in automation and electrical control cabinets. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

PLC Systems

For PLC and motion-control equipment, 109S008 provides a dedicated forced-air cooling path. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Variable Speed Drives

SANYO DENKI 109S008 serves inverters and industrial drive systems that operate with sustained internal heat. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. It provides a practical cooling path for OEM integration.

Frequently Asked Questions

What should be checked if 109S008 stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

Is 109S008 easy to install and maintain?

Confirm connector and mounting details, keep the airflow path clear, and isolate power before cleaning or service.

How should 109S008 be matched to an enclosure?

Check its 120 × 120 × 38 mm size, 141/162 m³/h airflow, 55.9/65.7 Pa pressure, mounting points, airflow direction, and system resistance.

What certifications apply to 109S008?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Can 109S008 replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

What maintenance does 109S008 require?

Inspect dust buildup, airflow blockage, abnormal noise, mounting security, and wiring condition; disconnect power before service.
