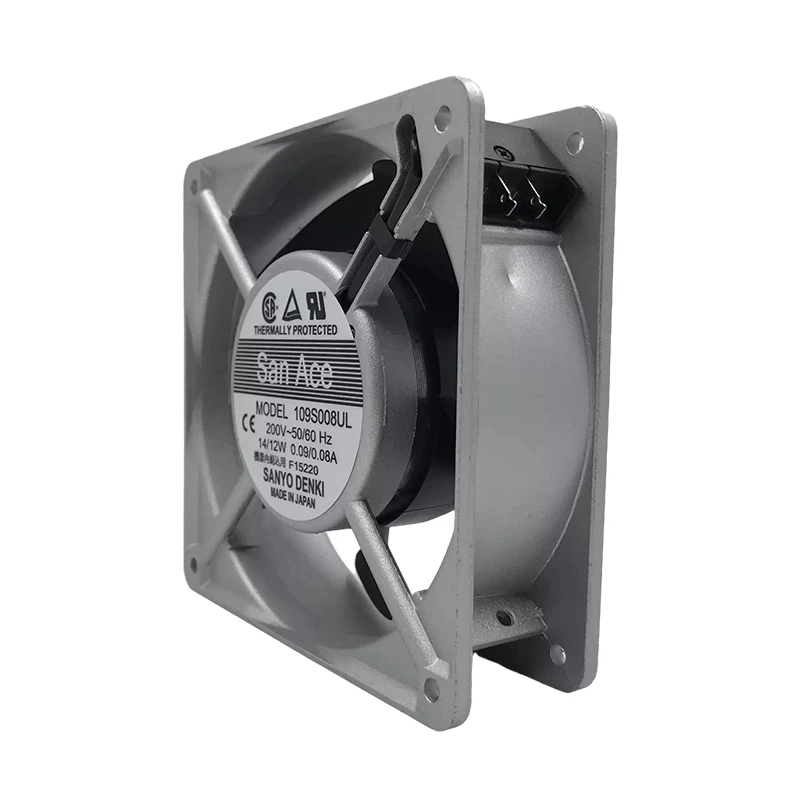

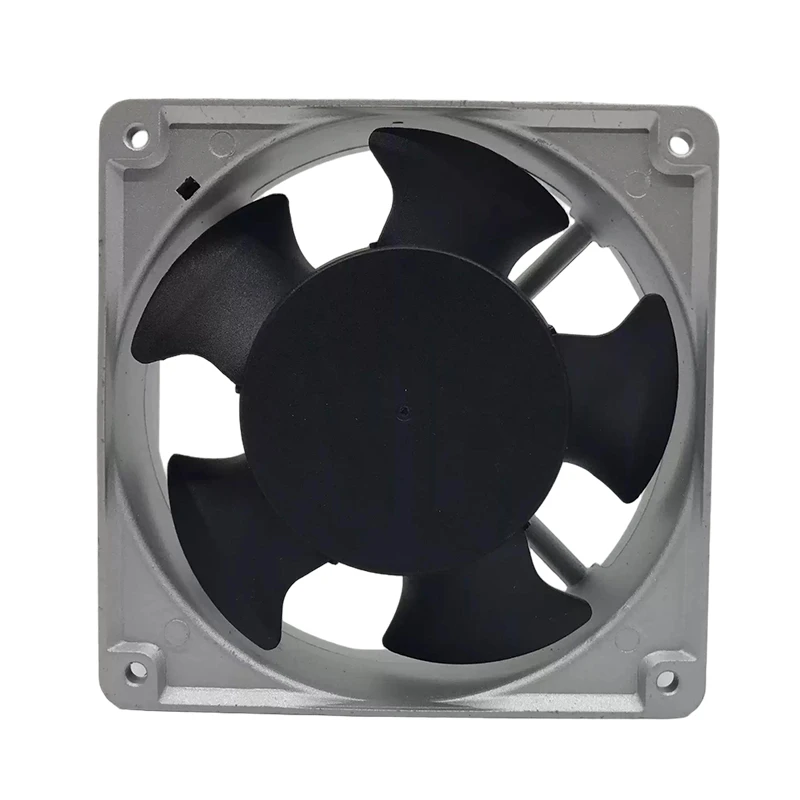

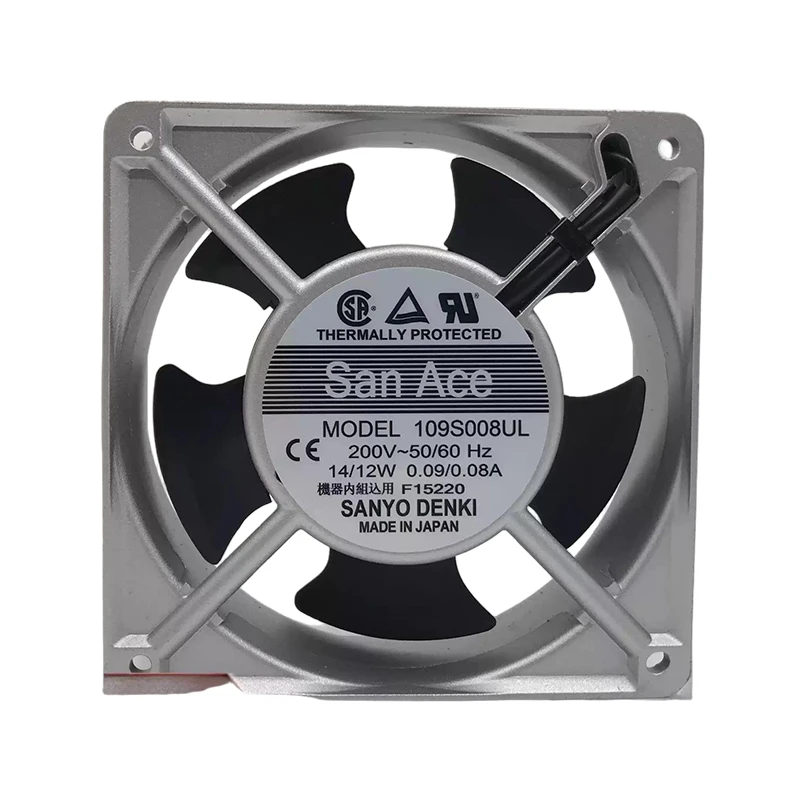

109S008UL Sanyo Axial Fan

Brand :: Sanyo

Model:: 109S008UL | Sanyo Denki 200VAC 14/12W AC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: The 109S008UL is a Sanyo Denki 200 VAC, size not stated AC axial fan for servers, UPS systems, and telecom equipment. Series options require suffix verification. Treat the speed benchmark as a primary input to cabinet ventilation planning. Treat bearing and life data as suffix-specific. Focus: replacement fit screening thermal-duty record.

Datasheet:: 109S008UL | Sanyo Denki 200VAC 14/12W AC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	200
Max.Air Flow(m³/h)	141/162
Max.Pressure(Pa)	55.9/65.7
Input Power(W)	14/12
Speed(rpm)	2700/3100
Noise(db)	40/43

Product Features

Reliable Fan Cooling

109S008UL brings San Ace AC axial fan cooling to automation controls, PLC cabinets and drive systems. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

The rated peak airflow of 141/162 m3/h combines with 55.9/65.7 Pa pressure capability to support useful flow after installation losses are considered. Procurement teams should match the entire part number to the approved specification. Thermal testing in a representative chassis confirms cooling margin before volume release.

Qualify performance with the production guard. This provides buyers with a traceable selection basis. Confirm the final fan curve in the assembled equipment.

Application Industry

Control Cabinets

For automation and electrical control cabinets, 109S008UL provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

PLC Systems

SANYO DENKI 109S008UL serves PLC and motion-control equipment that operate with sustained internal heat. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It provides a practical cooling path for OEM integration.

Variable Speed Drives

109S008UL is suitable for inverters and industrial drive systems. Air circulation around processors, power devices and control electronics limits heat concentration and supports stable operation. The application supports stable equipment service. Selection should follow the approved full model code.

Frequently Asked Questions

What certifications apply to 109S008UL?

The workbook marks it RoHS compliant. Confirm model-specific UL, CSA, TÜV, or other required approvals from official documentation.

Can 109S008UL replace another fan directly?

Match voltage, size, mounting, airflow direction, airflow, pressure, connector, control signal, and protection before substitution.

What airflow is listed for 109S008UL?

The worksheet lists 141/162 m³/h. Compare the operating point with system resistance and the official performance curve.

Can 109S008UL reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What input power is listed for 109S008UL?

The worksheet lists 14/12 W. Check supply capacity and operating conditions before commissioning.
