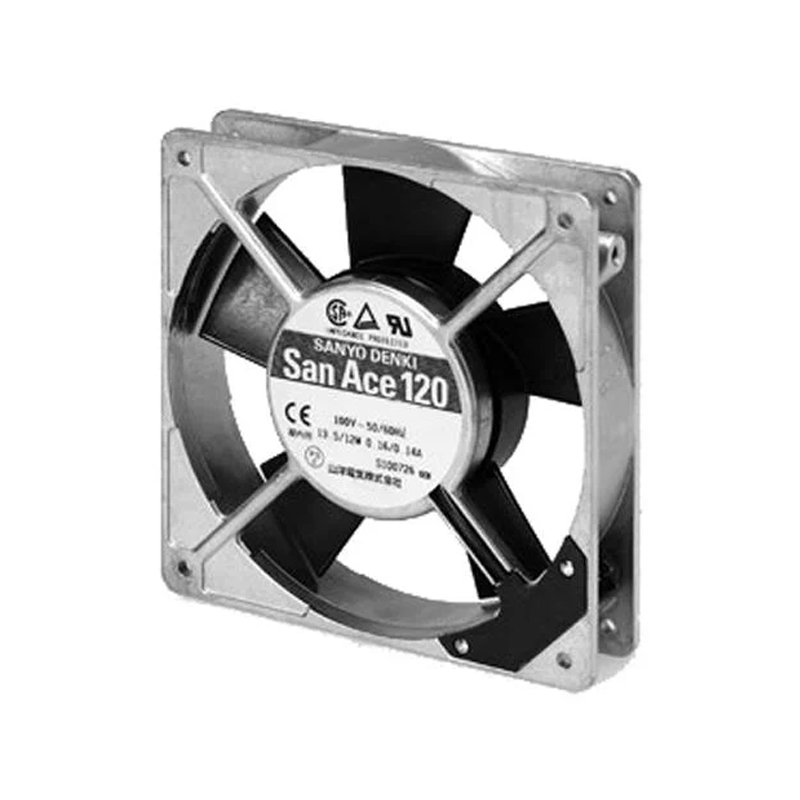

109S025 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109S025 | Sanyo Denki 230VAC 12W AC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: Within servers, UPS systems, and telecom equipment, Sanyo Denki 109S025 operates as a 119 × 119 × 38 mm AC axial fan at 230 VAC. The series cooling function is confirmed; suffix-specific options require datasheet verification. Its 3100 rpm rating defines a lower-speed operating point. Selection focus: wiring scheme review performance curve.

Datasheet:: 109S025 | Sanyo Denki 230VAC 12W AC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	230
Size(mm)	11911938
Max.Air Flow(m³/h)	160.2
Max.Pressure(Pa)	65.7
Input Power(W)	12
Speed(rpm)	3100
Noise(db)	43

Product Features

Low Vibration Fan

SANYO DENKI positions 109S025 as a AC axial fan for automation controls, PLC cabinets and drive systems. It helps equipment designers manage local hot spots where natural convection is insufficient.

A listed maximum airflow of 160.2 m3/h and maximum pressure of 65.7 Pa give engineers a clear basis for matching the fan to enclosure resistance. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Preserve outlet space to limit recirculation. This provides buyers with a traceable selection basis. Confirm the final fan curve in the assembled equipment. Preserve clear inlet and outlet space during installation.

Application Industry

Control Cabinets

109S025 is suitable for automation and electrical control cabinets. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service. Selection should follow the approved full model code.

PLC Systems

The San Ace 109S025 supports thermal management in PLC and motion-control equipment. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

Variable Speed Drives

For inverters and industrial drive systems, 109S025 provides a dedicated forced-air cooling path. Directed airflow carries component heat toward the equipment exhaust and helps maintain a controlled internal temperature. The application supports stable equipment service.

Frequently Asked Questions

What equipment is 109S025 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.

What IP protection is documented for 109S025?

No exact IP rating is supplied for this model row. Check the current model datasheet before use in water, dust, or oil exposure.

What airflow is listed for 109S025?

The worksheet lists 160.2 m³/h. Compare the operating point with system resistance and the official performance curve.

What is the lead time for 109S025?

Availability and lead time can change. Confirm the exact suffix, quantity, and delivery date with the supplier before ordering.

What supply voltage does 109S025 require?

The worksheet lists 230 VAC. Check polarity or AC frequency and the wiring diagram before commissioning.
