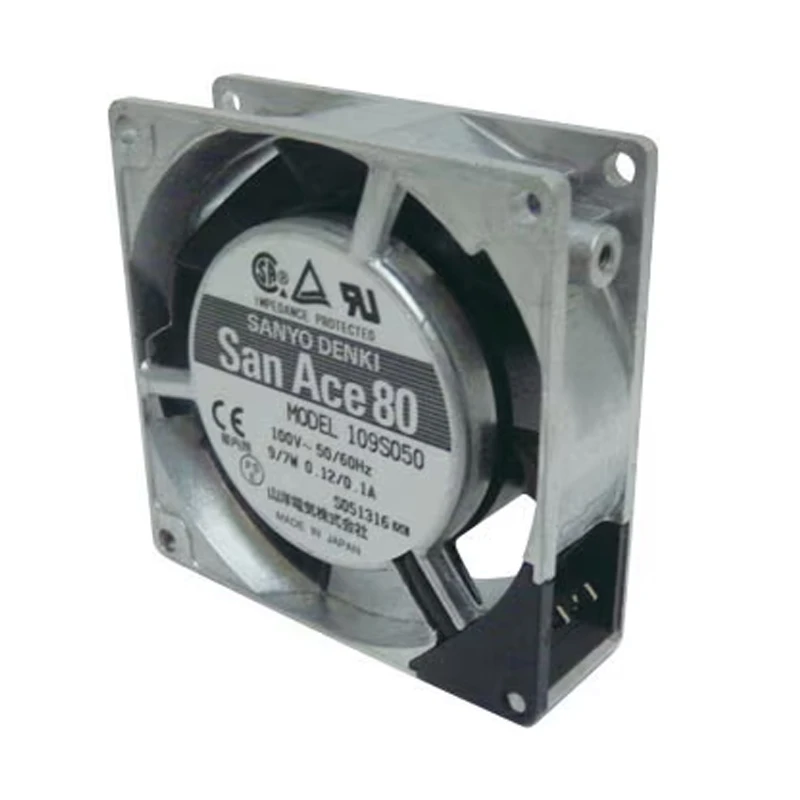

109S050 Sanyo Axial Fan

Brand :: Sanyo

Model:: 109S050 | Sanyo Denki 100VAC 9/7W AC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: Within servers, UPS systems, and telecom equipment, Sanyo Denki 109S050 operates as a 80 × 80 × 25 mm AC axial fan at 100 VAC. Series options require suffix verification. 27.5/38.3 Pa maximum pressure is the most distinctive duty-point parameter. Focus: resistance curve checking catalog specification.

Datasheet:: 109S050 | Sanyo Denki 100VAC 9/7W AC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	100
Size(mm)	808025
Max.Air Flow(m³/h)	37.8/45.6
Max.Pressure(Pa)	27.5/38.3
Input Power(W)	9/7
Speed(rpm)	2650/3100
Noise(db)	30/33

Product Features

Reliable Fan Cooling

109S050 brings San Ace AC axial fan cooling to automation controls, PLC cabinets and drive systems. The compact air-moving design suits OEM assemblies that require continuous ventilation around electronic and power components.

A listed maximum airflow of 37.8/45.6 m3/h and maximum pressure of 27.5/38.3 Pa give engineers a clear basis for matching the fan to enclosure resistance. Selection should include a system-resistance review, mounting check and harness confirmation. The full model code matters because signal and lead options can differ within a series.

Check startup demand against the power supply. This confirms cooling margin before volume production. Confirm the final fan curve in the assembled equipment.

Application Industry

Control Cabinets

109S050 is suitable for automation and electrical control cabinets. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

PLC Systems

The San Ace 109S050 supports thermal management in PLC and motion-control equipment. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling. Selection should follow the approved full model code.

Variable Speed Drives

For inverters and industrial drive systems, 109S050 provides a dedicated forced-air cooling path. Reliable ventilation reduces hot spots around sensitive electronics and supports consistent equipment availability. It supports reliable OEM equipment cooling.

Frequently Asked Questions

What supply voltage does 109S050 require?

The worksheet lists 100 VAC. Check polarity or AC frequency and the wiring diagram before commissioning.

What speed is listed for 109S050?

The listed speed is 2650/3100 rpm. Confirm control conditions and the actual duty point.

What should procurement confirm for 109S050?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

Does 109S050 have a pressure rating?

The worksheet lists 27.5/38.3 Pa. Use the official curve to match it to system resistance.

What equipment is 109S050 suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.
