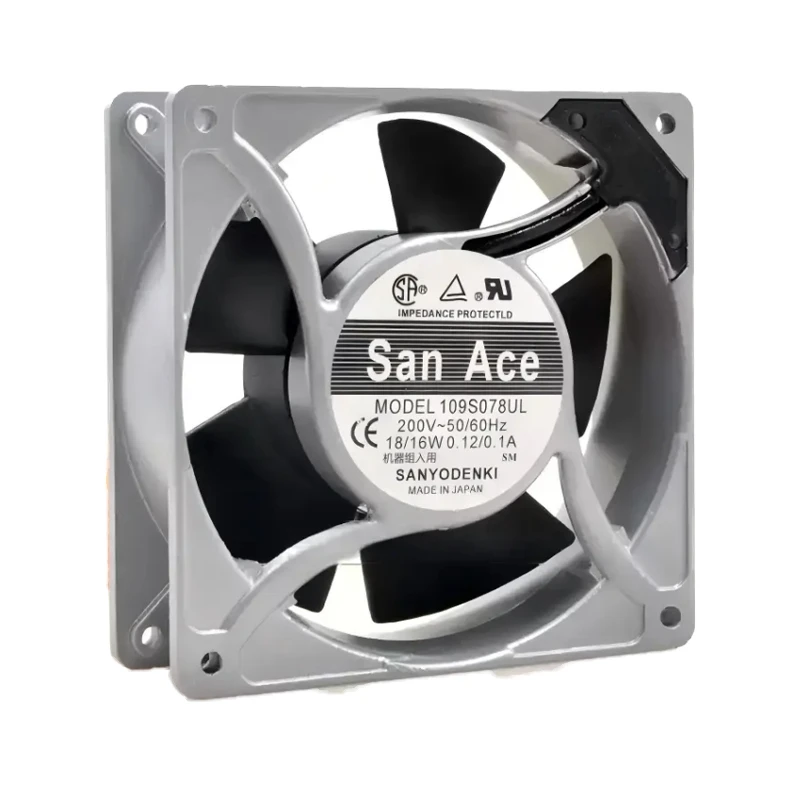

109S078UL Sanyo Axial Fan

Brand :: Sanyo

Model:: 109S078UL | Sanyo Denki 200VAC 18/16W AC Axial Fan for automation and control cabinet cooling

Type:: Axial Fans

Industry:: Automation

Description:: The 120 × 120 × 38 mm Sanyo Denki 109S078UL brings 200 VAC AC axial fan cooling to servers, UPS systems, and telecom equipment. Series options require suffix verification. The recorded mounting size should guide service-life planning. Match the exact part number before approving a substitute. Focus: enclosure space planning ventilation capacity.

Datasheet:: 109S078UL | Sanyo Denki 200VAC 18/16W AC Axial Fan for automation and control cabinet cooling Datasheet (Pdf)

Product Features

Rated Voltage(V)	200
Size(mm)	12012038
Max.Air Flow(m³/h)	150/174
Max.Pressure(Pa)	57.9/68.7
Input Power(W)	18/16
Speed(rpm)	2700/3100
Noise(db)	42/45

Product Features

Efficient Cooling

The SANYO DENKI 109S078UL is a AC axial fan developed for automation controls, PLC cabinets and drive systems. Its directed airflow helps remove heat from densely arranged components and supports predictable equipment temperatures.

With up to 150/174 m3/h airflow and 57.9/68.7 Pa static pressure, the model can move cooling air through vents, filters and compact internal passages. Buyers should confirm the complete suffix, connector, sensor output and control option before ordering. Engineers should validate the operating point with the actual grille and filter.

Measure installed sound in the final cabinet. The check aligns mechanical fit with cooling duty. Confirm the final fan curve in the assembled equipment.

Application Industry

Control Cabinets

The San Ace 109S078UL supports thermal management in automation and electrical control cabinets. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation.

PLC Systems

For PLC and motion-control equipment, 109S078UL provides a dedicated forced-air cooling path. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation.

Variable Speed Drives

SANYO DENKI 109S078UL serves inverters and industrial drive systems that operate with sustained internal heat. These systems need continuous heat removal because compact layouts and rising power density restrict natural convection. This helps maintain dependable equipment operation.

Frequently Asked Questions

Can 109S078UL reduce total operating cost?

Compare its listed power with the required airflow, pressure, and operating hours. System-level savings depend on correct duty-point selection.

What input power is listed for 109S078UL?

The worksheet lists 18/16 W. Check supply capacity and operating conditions before commissioning.

What should be checked if 109S078UL stops?

Verify supply, connector, obstructions, impeller movement, and alarm or protection status using the model-specific troubleshooting data.

What should procurement confirm for 109S078UL?

Confirm full suffix, voltage, connector, control signal, bearing, IP rating, certifications, stock, and required delivery date.

Does 109S078UL have a pressure rating?

The worksheet lists 57.9/68.7 Pa. Use the official curve to match it to system resistance.

What equipment is 109S078UL suited to?

It is listed for servers, UPS systems, and telecom equipment. Confirm airflow, pressure, dimensions, and environmental conditions against the actual equipment.
